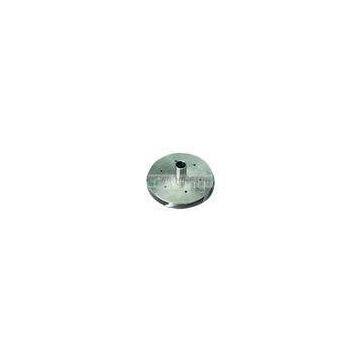

Duplex Stainless Steel 1.4517 Investment Casting Impeller CNC Machined

Duplex Stainless Steel 1.4517 Investment Casting Impeller CNC Machined thumbnail-1
Duplex Stainless Steel 1.4517 Investment Casting Impeller CNC Machined photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Winnington
Place of Origin:
China
Model Number:
stainless steel investment casting 004
Contact Supplier Request Quote Chat Now
Winnington Casting CO.,
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Winnington
Place of Origin China
Model Number stainless steel investment casting 004
Delivery Time:30-90 days
Certification:PED/AD2000

Duplex Stainless steel 1.4517 Investment casting impeller X ray test availalbe CNC machined in house.



Quick Detail:

  Centrifugal pump Impellers made of Duplex stainless steel 1.4517;   Manufactured by silica sol investment casting process;   Wax type: Medium temperature wax;   CNC machining in House;   PED/AD2000 certificated;   Weight: 3.2KG;
Description:
Custom made stainless steel investment casting parts applied in marine and oil industry, made of corrosion resistant stainless steel material 1.4517.
We cast various type of materials: stainless steel, carbon steel, nickel-based materials. See below talbe:

Stainless Steel (70%)

Carbon Steel

Alloy Steel

CF3M (AISI 316L), CF8M (AISI 316), CF8 (AISI 304),CD4MCu, CD4MCuN,ANC20,ANC4B, 1.4408,1.4517, 1.4306, 1.4581,303,  430, 420, 17-4PH, SCS1

and more

1020, 1040, SCS16, SCS14, SCS13, 1.0619, WCB, S355JR, LCC

and more

ANC2,CLA12C,42CrMo,7Q, 8Q,4140,6150

and more

Process of investment casting:
Wax die making: Our wax tooling is made of Aluminum which is easy for machining and fast for cooling, at the same time, light for handling.
Wax injection: Filling the entire mould with molten wax, and let it cool, until a desired wax pattern is shaped and harden.
Assemble the wax patterns: The wax patterns are welded to a runner system by a heated metal tool according to a certain pattern cluster(tree) design.
Investment: The ceramic mould, known as the investment, is produced by three repeating steps: coating, stuccoing, and hardening. The first step involves dipping the cluster into a slurry of fine refractory material and then letting any excess drain off, so a uniform surface is produced. This fine material is used first to give a smooth surface finish and reproduce fine details. In the second step, the cluster is stuccoed with a coarse ceramic particle, by dipping it into a fluidised barrel, placing it in a rainfall-sander. Finally, the coating is allowed to harden.
Dewax: The investment is then allowed to completely dry, which can take 16 to 48 hours. It is then turned upside-down and placed in a autoclave to melt out and/or vaporize the wax.
Burnout & preheating: The mold is then subjected to a burnout, which heats the mold to remove any moisture and residual wax, and to sinter the mold. The mold is preheated to allow the metal to stay liquid longer to fill any details and to increase dimensional accuracy.
Pouring: The investment mold is then placed cup-upwards into a tub filled with sand and be poured.
After treatment: The shell is then hammered, media blasted, vibrated, waterjeted, or chemically dissolved to release the casting. Further actions like weld repairing,grinding, shot blasting,CNC machining, electro plating will be taken to get a final cleaned precision casting part.


Applications:



Pumps
Valves
Pipe Fittings
Automotive
Marine and Oil
Machinery
Power & Energy

Mechanical parts



Specifications:

Material Standards

ASTM,JIS,DIN,BS,MIL

Maximum Casting Size

500*500*350mm

Casting weight range

10g~80kg

Min Wall thickness

1.5-2mm

Casting process type

silica sol

Machining

CNC machining, CNC lathe

Surface finish

machine/hand polishing, chemical plating;

Tolerances

According to VDG P690

Physical performance

Tensile test, (low temperature) Impact test, Hardness test

Chemical composition test

Spectrometer
