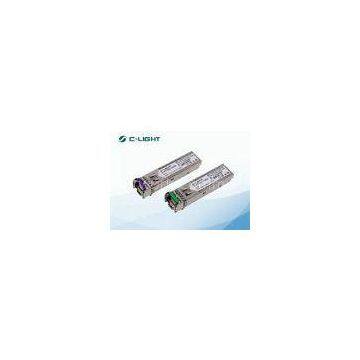

155M 100BX BIDI SFP Transceiver For CISCO / 80km SMF Transceiver
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
- VCXO 32.768Mhz ±50ppm 1.8V SMD Voltage Controlled Crystal Oscillator VTKUPLSANF-32.768000
- VCXO 200Mhz ±50ppm 3.3V SMD Voltage Controlled Crystal Oscillator VTEMPCJANF-200.000000
- VCXO 61.44Mhz ±50ppm 3.3V SMD Voltage Controlled Crystal Oscillator VTEUPLJANF-61.440000
- VCXO 32Mhz ±25ppm 3.3V SMD Voltage Controlled Crystal Oscillator VTEUMLJANF-32.000000
- VCXO 614.4Mhz ±50ppm 3.3V SMD Voltage Controlled Crystal Oscillator VTEMPLLANF-614.400000
- VCXO 125Mhz ±50ppm 3.3V SMD Voltage Controlled Crystal Oscillator VTEUPLLANF-125.000000
Product Details
Brand Name: | C-LIGHT | Place of Origin: | China | Model Number: | CLSFP15BD4580 CLSFP15BD4580D |
Product Description
Certification:TUV/CE/FCC/RoHS/INMETRO
155M 100BX BIDI SFP Transceiver For CISCO / 80km SMF Transceiver
Quick Detail:
1. Form: SFP BiDi
2. Data Rate: 155Mb/s
3. Reach: 80km SMF
4. Wavelenth: TX1490nm RX1550nm
5. Connector: LC Simplex
6. Appliactions: 155M 100BX Fast Ethernet
Specifications:
Form Factor | SFP BiDi |
Distance | 80km |
Protocol | 155M 100BX Fast Ethernet |
Data Rate (max) | 155Mb/s |
Low End Case Temperature (°C) | -40°C |
High End Case Temperature (°C) | 85°C |
Diagnostics | CLSFP15BD4580 without DDM/DOM |
CLSFP15BD4580D with DDM/DOM |
|
Transmitter & Power Out | BOSA DFB, Pout 0~5dB |
Receiver & Sense | BOSA PIN, Pin >-32dBm |
Voltage Supply | 3.3 |
Connector | LC Simplex |
RoHS | YES |
Certification | TUV/CE/FCC/RoHS/INMETRO |
Description:
BiDi SFP 100BX TX1490nm RX1550nm is a bidi optical transceiver module. BiDi is short name of Bi-Directional. BIDI Transceiver Module is a kind of WDM (Wavelength Division Multiplexing) application in optic fiber communication. Full Dulplex Communication realized in single fiber cable by BiDi SFP SFP+ XFP transceivers. BiDi module best feature is to save one optic cable in system. C-Light offers BiDi SFP(SC/LC) SFP+ XFP for 155M – 10G single fiber upto 80km communication.
C-LIGHT is your reliable supplier of BiDi SFP 100BX TX1490nm RX1550nm transceiver. We produce and stock a large quantity of BiDi SFP 100BX TX1490nm RX1550nm transceivers. All of our BiDi SFP 100BX TX1490nm RX1550nm transceivers are tested in-house prior to shipping to insure that they will arrive in perfect physical and working condition. We guarantee the BiDi SFP 100BX TX1490nm RX1550nm transceiver modules to work in your system without any problem.
In addition to BiDi SFP 100BX TX1490nm RX1550nm transceiver, we also carry a wide array of other transceiver modules.
If you have any question about BiDi SFP 100BX TX1490nm RX1550nm transceiver, please do not hesitate to contact us.
Competitive Advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Big stock, Fast delivery
6. Excellent Low Power Consumption
