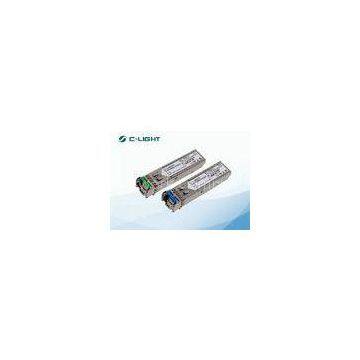

1000M SFP BIDI Optical Transceiver / 1000BX 20km 1.25G 1000BX Ethernet
Quick Detail:
1. Form: SFP BiDi
2. Data Rate: 1.25Gb/s, 1000M
3. Reach: 20km SMF
4. Wavelenth: TX1310nm RX1550nm
5. Connector: LC Simplex
6. Appliactions: 1.25G 1000BX Ethernet
Specifications:
Form Factor | SFP BiDi |
Distance | 20km |
Protocol | 1.25G 1000BX Ethernet |
Data Rate (max) | 1.25Gb/s |
Low End Case Temperature (°C) | -40°C |
High End Case Temperature (°C) | 85°C |
Diagnostics | CLSFPGEBD3520 without DDM/DOM |
CLSFPGEBD3520D with DDM/DOM |
|
Transmitter & Power Out | BOSA FP, Pout -9~-3dB |
Receiver & Sense | BOSA PIN, Pin >-20dBm |
Voltage Supply | 3.3 |
Connector | LC Simplex |
RoHS | YES |
Certification | TUV/CE/FCC/RoHS/INMETRO |
Description:
BiDi 1000BX TX1310nm RX1550nm 20km is a bidi optical transceiver module. BiDi is short name of Bi-Directional. BIDI Transceiver Module is a kind of WDM (Wavelength Division Multiplexing) application in optic fiber communication. Full Dulplex Communication realized in single fiber cable by BiDi SFP SFP+ XFP transceivers. BiDi module best feature is to save one optic cable in system. C-Light offers BiDi SFP(SC/LC) SFP+ XFP for 155M – 10G single fiber upto 80km communication.
C-LIGHT is your reliable supplier of BiDi 1000BX TX1310nm RX1550nm 20km transceiver. We produce and stock a large quantity of BiDi 1000BX TX1310nm RX1550nm 20km transceivers. All of our BiDi 1000BX TX1310nm RX1550nm 20km transceivers are tested in-house prior to shipping to insure that they will arrive in perfect physical and working condition. We guarantee the BiDi 1000BX TX1310nm RX1550nm 20km transceiver modules to work in your system without any problem.
In addition to BiDi 1000BX TX1310nm RX1550nm 20km transceiver, we also carry a wide array of other transceiver modules.
If you have any question about BiDi 1000BX TX1310nm RX1550nm 20km transceiver, please do not hesitate to contact us.
Competitive Advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Big stock, Fast delivery
6. Excellent Low Power Consumption
