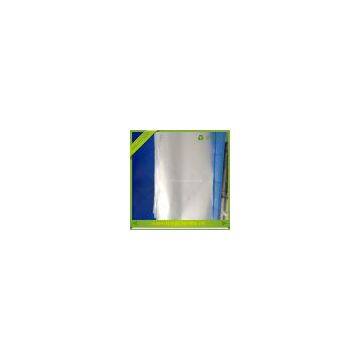

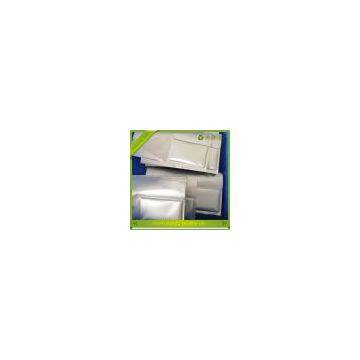

Pouched aluminum plastic film for lithium battery
1.high tensile strength
2.strong corrosion resistance
3.MOQ:10Sq.m
Specification of aluminum plastic film for lithium battery
Consist | D-EL40H | ||
ON25 | |||
DL4 | |||
AL40 | |||
Improved PPa15 | |||
Improved PP30 | |||
Acid modified resin combination, waterproof and acid attacks (Thickness 114µm) | |||
Thickness | µm | Designed | 114 |
Steam Barrier Property 60°C90%RH 336H | PPm | Sealing Pressure 1.0MPa | 50↓ |
Initial strength of laminated layers(AL/PPa) | N/15mm | 11~12 | |
Initial sealing strength | N/15mm | Sealing Pressure 0.5MPa | 70~80 |
190°C 3seconds | Sealing Pressure 1.0MPa | 85↑ | |
The electrolyte resistance(Test for sealing into film strength) | N/15mm | 4.0↑ | |
60°C 14days | |||
Electrolyte resistance(Test for sealing into film strength) | N/15mm | Sealing Pressure 0.5MPa | 40~50 |
60°C 14days | Sealing Pressure 1.0MPa | 50~60 | |
Sealing strength for electrolyte | N/15mm | Sealing face pressure 0.5MPa | 80~90 |
190°C 3seconds | Sealing face pressure 1.0MPa | 80~90 | |
Punch forming depth | mm | Control drape pressure 0.17MPa (Size:80*120mm) | 5.0↑ |
