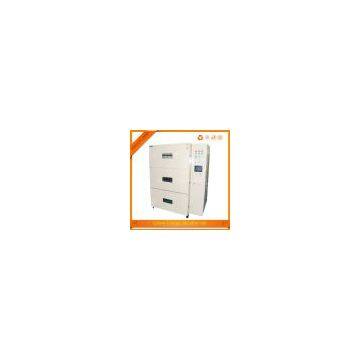

Li ion battery three layers Vacuum Drying Oven
Introduction of Vacuum Oven (GNVO-03)
parameter
performance
description/model
Battery special vacuum oven /VO-03
Workroom size
height:300mm width: 800mm depth: 600mm*3 layers
outline size
height:1850mm width:1420 mm depth: 890mm
working temperature
room temperature :+15°C~200°C
the speed of rising temperature
not more than 120 minutes when rising to the max.temperature
heating power
4.5KW*3
electrical supply
Three- phases380V
outside material
Cold-rolled plate,spay platics
color
According to the customer’s color standard
working room material
SUS304 stainless steel plate
Stratified
Multi
layer floor
2 layer mesh partition / layer
exhaust connection
back
Open method
Single-door, flexible double steel glass, with overpressure protection function
sealing ring
silicone rubber ring with high temperature resistance, no connector
temperature instrumentation
digital temperature controller
Temperature control mode
PID regulator
Temperature accuracy
±1°C
Temperature uniformity
±5°C
Temperature Sensor
PT100
Timing Control
10 -hour timer, the alarm buzzer
Over temperature protection
over-temperature protection,when over the temperature, cut off the heating power and alarm buzzer
Heating device
Heating wire
Vacuum
100Pa, 6 hours pointer does not move ,12 hours to keep 98% , 24 hours to keep 95%
Gas leakage
≤300pa/h
Remark
three studios to work independently, independent heating, three sets of temperature control system, can work alone, can also work at the same time.Manual control vacuum switch, vacuum- sealed well when the power cut. The vacuum chamber can be individually, separately add nitrogen, without disturbing each other.
