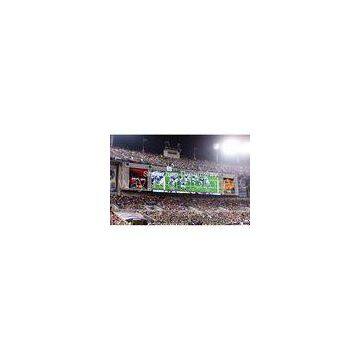

DIP546 PH20 Stadium LED Display Outdoor Advertising With 6000 Nits

Name: DIP546 PH20 Stadium LED Display Outdoor Advertising With 6000 Nits
Brand: Dreamway
SKU: 148865572
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Dreamway

Place of Origin:

China

Model Number:

P20

Shenzhen Dreamway Technology Company

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name Dreamway

Place of Origin China

Model Number P20

Delivery Time:20 days after receiving the deposit
Certification:CE,ROHS

DIP546 PH20 Stadium LED Display Outdoor Advertising with 6000 nits

Quick Detail:

1. OPTO / SILAN LED;

2. MBI5024 LED driver IC;

3. Static scan;

4. 2 years quality guarantee;

5. Spare pieces offered;

6. Plywood case package.

Detail Description:

Video processor used to get more input signals;

High luminance about 6000 nits / sq.m;

Famous brand OPTO / SILAN LED chip, long using span.

Specifications:

Model	PH20
LED Composition	2R1G1B
LED Type	DIP546
Pixel	2,500 dots/sq.m
Module Pixel	W 16 × H 8
Module Size	W 320 × H 160 mm
Cabinet Material	Steel
Driving Method	Static scan
Luminance	≥6000 nits/sq.m
Refresh Rate	≥1200 Hz
Out of Control Dot Rate	＜0.0001
Earth Leakage Current	＜2mA
MTBF	＞5,000 hours
LED Life Span	＞100,000 hours
Power Supply	110V/60HZ and 220V/50HZ interchangeable
Humidity	10%~90%
Control Method	Synchronous control with PC on
Input Signal	DVI, COMPOSITE VIDEO, S-VIDEO, HDMI
