Certification:CE,ROHS
Static Scan P 16 Outdoor Advertising LED Display with Brightness 7500 CD
Quick Detail:
1. MBI5024 LED driver;
2. 16×16 dots per LED module;
3. 256 by 256 mm module size;
4. 1024 by 768 mm cabinet dimension;
5. Epistar LED chip;
6. 1R1G1B LED composition.
Detail Description:
7500 nits per square meter luminance makes sure that it is visible even under strong sunshine;
CE standard power supply is the guarantee of display operation well;
Plywood box is strong, hard to be damaged.
Application:

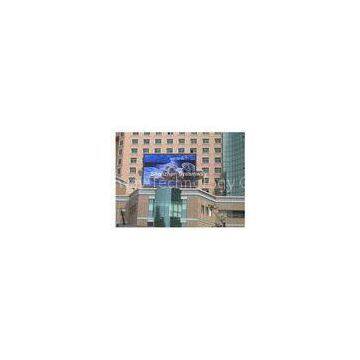

It is installed on buiding, shopping center, park, school, etc, for video advertising.
Specifications:
Type | P16 |
LED Composition | 1R1G1B |
LED Type | DIP546 |
Pixel | 3,906 dots/sq.m |
LED Module Pixel | W 16 × H 16 |
LED Module Size | W 256 × H 256 mm |
Normal Cabinet Dimension | W 1024 × H 768 mm |
Cabinet Color | Black |
Driving IC | MBI5024 |
Driving Method | Static scan |
Luminance | ≥7500 nits/sq.m |
Refresh Rate | ≥800Hz |
Out of Control Dot Rate | ＜0.0001 |
Earth Leakage Current | ＜2mA |
MTBF | ＞5,000 hours |
LED Life Span | ＞100,000 hours |
Power Source | 110V/60HZ and 220V/50HZ interchangeable |
Humidity | 10%~90% |
Operation Software | NovaStudio |
Control Method | Synchronization control |
PH16 Outdoor Advertising LED Display, Waterproof Outdoor LED Display Screen Advertising, Factory Outdoor Advertising LED Display
