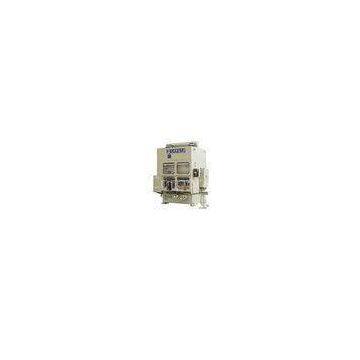

Double Row Feeding Automatic Multi Position Precision Power Press Machine For Deep Drawing
SD Series Multi-Position Precision Power Press
Specification:
| Item | Unit | SD-110 | SD-160 | SD-200 | SD-250 | |
| Nominal Pressure | kN | 1100 | 1600 | 2000 | 2500 | |
| Nominal Pressure Stroke | mm | 4 | 4 | 4 | 5 | |
| Slide Stroke | mm | 180 | 180 | 200 | 250 | |
| No of Stroke Per Minute | Spm | 30-50 | 30-40 | 30-40 | 20-30 | |
| Max Die Height | mm | 380 | 380 | 500 | 550 | |
| Working Table Surface Size | F.B | mm | 680 | 760 | 840 | 920 |
| L.R | mm | 1880 | 2040 | 2420 | 2700 | |
| Thickness | mm | 150 | 160 | 170 | 180 | |
| Slide surface size | F.B | mm | 520 | 580 | 650 | 650 |
| L.R | mm | 1450 | 1600 | 1850 | 2160 | |
| Main Motor Power | kW | 11 | 18.5 | 22 | 30 | |
| No of Station | pc | 5-11 | 6-11 | 6-11 | 6-11 | |
| Transfer Stroke | Mm | 100~140 | 100~200 | 100~250 | 100~250 | |
| Overall Dimension | F.B | mm | 1900 | 2050 | 2200 | 2520 |
| L.R | mm | 1990 | 2170 | 2420 | 2750 | |
| Height | mm | 3275 | 3400 | 3945 | 4263 | |
|
Note: The technical parameters such as No of Station, Transfer Stroke, and Structure would be change according to the requirements of users to custom. |
Features
SD series transfer press introduced advanced foreign technology with independent intellectual property rights, which mainly used in the technology fields of deep drawing, automatic multi-station punching ,such as bearing shells, electric cabinet, battery shell and etc.The press may realize feeding,blanking,forming, trimming ,and other functions.
* Welded frame with high-rigidity steel, which could ensure punching precision and long life of die equipment.
* The slide adopt long square guide rails, which move smoothly and can resist lateral force effectively, suitable for drawing process.
* Slide with six guide rails travel smoothly, and resist lateral force effectively, which suitable for drawing process.
* The feeding system adopts servo or mechanical cam device (Awarded national patents)
* Introduce flexible gripping feeding structure with unique torque protecting device. (Awarded national patents)
* Combined spring and polyurethane material ejection structure, stable and reliable. (Awarded national patents)
* With mandatory lubrication pump, which could effectively prevent die temperature rise, also equipped with magnetic separation device could effectively remove iron powder
