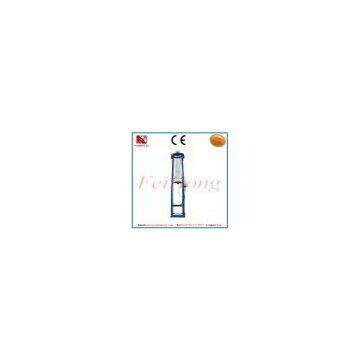

FM24-PLC Filling Machine for Heater|mgo Powder Filling Machine

On the basis of the FM24 Standard Filling Machine, this machine introduces PLC, human-machine interface (touch screen), straight line guiding track and revolving clamp assemble. This machine come in two types: 24 stations and 48 stations, with the maximum filling length of 6M, and maximum filling dia. of Φ12.7mm. Because of the introduction of OLC and programmed counting assembly, users can easily adjust the length required by filling in the actual length(empty tube length) on the touch screen. This makes it more convenient and accurate than the artificial electro-adjustments, with an extra precision in filling orientation. The spiral nozzle inside the guiding tube and the exserted mandrel (hook) endows it with greater convenience than the previous artificial adjustment machines.
The pneumatic clamp we designed and shorter parts (below 1500mm) can quickly clamp 24 parts in a single clamping process, thus bringing high productivity.
In recent years, we have improved the structure of nozzle structure by applying the three layer tube structure instead of the traditional helix nozzle, which enables a larger flow of MGO and a higher filling efficiency. Whether in terms of helix nozzle or three layer tube structure, FM24-PLC boasts advanced filling equipment at home and abroad.
