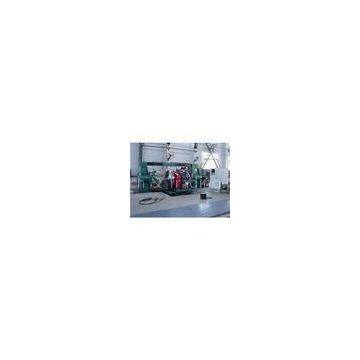

Help CenterAutomatic Precision Hydraulic Wheel Press Machine 13mm x 200mm
Related Products
-
Electric CNC Precision Hydraulic Wheel Press Equipment 3-30mm/sNegotiableMOQ: 1 Set -
CNC Hydraulic Wheel Press , Automatic Hydraulic Gear Press MachineryNegotiableMOQ: 1 Set
-
Horizontal Automatic Hydraulic Wheel Press Equipment For AutomobileNegotiableMOQ: 1 Set
-
50KW DC 24V 3150KN Hydraulic Wheel Bearing Press For Inspection IndustryNegotiableMOQ: 1 Set
-
Horizontal CNC Hydraulic Wheel Press For Railway Vehicle RepairingNegotiableMOQ: 1 Set
Certification:ISO9001:2000
Description:
According to the need of railway speeding up & safety, to improve the quality of manufacture inspection & repair of vehicle running gear, the automatic hydraulic wheel press is developed. The machine consists of main press fit framework, position measuring framework, control system. The machine is used to accomplish the press fitting wheel set of railway vehicles. It can fulfill the press fitting double ends of wheel set at the same time, control the position deviation of the wheel set and the inside distance of two wheel sets to attain the range of the criterion. Meanwhile, it produces the data of wheel set press fit. The machine is widely equipped and used in railway vehicle repairing & inspection industry.
Specifications:
|
Item |
Parameter |
|---|---|
|
Pressure head cylinder max. work pressure |
3150KN |
|
Pressure head cylinder quantity |
2 |
|
Pressure head cylinder ram cylinder max. stroke |
700 mm |
|
Pressure head cylinder diameter |
Ø360 mm |
|
Gantry max. pass wheel diameter |
1050mm |
|
Max insert length |
3000 mm |
|
Movable equipment positioning adjustable distance |
13x200 mm |
|
Pressure head cylinder plunger rod feeding speed (adjustable) |
3~30mm/s |
|
Pressure head cylinder plunger rod push mounting speed (adjustable) |
0~3mm/s |
|
Pressure head cylinder plunger rod return speed (adjustable) |
4~40mm/s |
|
Two centers max. bearing |
10000kg |
|
Electricity motive small car quantity |
1set |
|
Electricity motive small car max. hold up weight |
3500kg |
|
Electricity motive small car rotation angle |
180degree |
|
Hydraulic system max. working pressure |
31.5Mpa |
|
Motor (three phases) voltage |
380V-50HZ |
|
Boost voltage |
DC 24V |
|
Installed gross capacity |
50KW |
|
Pressure sensor accuracy |
≤0.15%FS |
|
Noise level when running |
75db |
|
Pressure head measurement inside control precision |
≤0.5 mm |
|
Pressure head measurement wheel order difference control precision |
≤0.5 mm |
|
Brake disc distance control precision |
≤0.5 mm |
|
Brake disc difference control precision |
≤0.5 mm |
|
Pressure head repeated positioning accuracy |
≤+0.025 mm |
|
Measurement accuracy |
≤+0.03 mm |
|
Measurement error precision (Jump) |
±0.02 mm |
|
Measuring system precision |
0.01 |
|
Pre-press fitting pressure |
≤50kN |
|
Oil tank capacity |
1000L |
|
Machine external dimension(L×W×H) |
600 |
