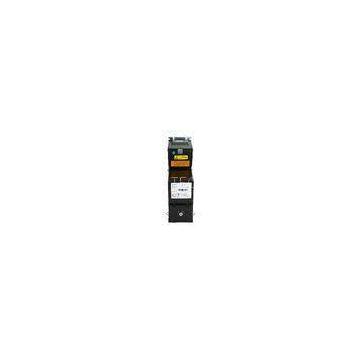

Smart Vending Machine Bill Acceptor With CCNET Serial Port For Self-service Payment Machine

Certification:EMV CL, RoHS, CE, QPBOC, EMC, WHOQ

Smart Vending Machine Bill Acceptor With CCNET Serial Port For Self-service Payment Machine

Quick Detail:

Advanced auto-calibration；

Advanced high-performance optical, inductive and dielectric sensors for identification anti-counterfeits feature；

Any of four direction of insertion；

Anti-phishing design；

Self-diagnosis；

Lock and removable secure stacker；

Beltless transportation design；

RS232-upgradable；

Track record for stacker installation and remove；

Collective notes in stacker is always tracked with a record；

Support to detect altered notes

Description:

This is a compact and integrated bill acceptor with the functions of advanced auto-calibration, denomination detected, anti-counterfeit notes, anti-phishing, lockable / removable secure stacker and running status auto-tracking.

Applications:

Recharging machine
Tanker
Automatic vending machine
Gaming machine
Self-service payment machine

Specifications:

Operating voltage	DC12V
Operating current	Static:300mA Peak:2000mA
Communication interface	RS-232 / CCNET  Serial port, CCNET protocol
Denomination	rub:5000,1000,500,100,50,10 Hryvnia:500,200,100,50,20,10,5,2,1
Complete transport cycle	3s
Notes-insertion	Four directions (No folded or no wrinkle)
Notes validation rate	98%
Sensors	Advanced optical, inductive, dielectric, anti-phishing sensors
M.T.B.F	1,500,000 cycles
Temperature	Operation:-10℃ ~ 50℃,0 ~ 90% RH(Non condensing) Storage:-25℃ ~ 80℃,0 ~ 95% RH(Non condensing)
Firmware updates	Through the RS232 serial programming mode PC RS232
Weight	Head:1750g Stacker 1000:1550g
Dimensions (W*H*D)	104×131×273mm
