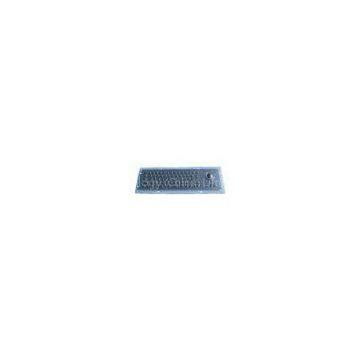

Help CenterPanel Mount Industrial Mini Keyboard Long Stroke With Mechanical Trackball
Related Products
-
Compact Format Mini Computer Keyboard / Industrial Kiosk KeyboardNegotiableMOQ: 1 Piece -
Stainless Steel Industrial Mini Keyboard With Ruggedized TouchpadNegotiableMOQ: 1 Piece
-
IP65 Dynamic Metal Industrial Mini Keyboard With Optical TrackballNegotiableMOQ: 1 Piece
-
81 Keys Industrial Stainless Steel Keyboard Kiosk With TrackballNegotiableMOQ: 1 Piece
-
Metal Industrial Mini Keyboard With Trackball , Short Stroke KeyboardNegotiableMOQ: 1 Piece
Certification:CE,FCC,ROHS,IP65,IP68,ESD
Quick Details:
1. IP65 dynamic vandal proof stainless steel industrial kiosk keyboard with trackball
2. 25.0mm trackball, 2 kinds trackball module optional
3. CE,RoHS,FCC certified,IP65 test report.
Descriptions:
1. MINI 68Keys Compact Format IP65 static Vandal Proof Stainless Steel industrial Keyboard
2. IP68 dynamic rated washable 25mm stainless steel trackball module for fast and accurate cursor position with
extremely smooth operation6 mouse keys
3. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling
for fast and accurate data input without any noise
4. one compete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet
5. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling
6. rear panel mounting solution
7. 2 optional trackball modules:
----IP68 static mecanical trackball module with 400DPI,
----IP68dynamic optical trackball module with 800 DPI,
Special Features:
1. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design,
functionality, longevity and high protection level.
2. We design and manufacture complete electronic modules including controller in close consultation with our customers.
3. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially
under extreme climatic conditions, water proof/dirt proof operation under hostile environments.
4. Waterproof execution according to degree of protection IP65 from the front panel, the keyboard is sealed against the
ingress or liquid and dirt, when mounted in a suitable enclosure.
5. The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate
data input without any noise. With firm tactile perception for comfortable operation
6. Internet friendly key layout, key-tops are laser etched in legends and characters for easy readability, long life to prevent
lettering rub-off.
7. Metal keys are protected against twisting and evering which can not be dislodged from front, or defaced removing key
covers.
8. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
9. Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into
the host computer for normal keyboard operations.
10. Optional Trackball Modules:
IP65 static rated mechanical trackball with 400 DPI,
IP68 dynamic washable optical trackball module with 800 DPI,
Pls.see below table:
|
Product Classifications and Descriptions |
IP Rated TB |
||
|
K-TEK-A293-MTB |
Keyboard; IP65 static rated mechanical trackball with 400 DPI; (2-in-1) |
PS/2;USB |
IP65 Static |
|
K-TEK-A293-OTB |
Keyboard; IP68 dynamic washable Optical Trackball with800 DPI; (2-in-1) |
PS/2;USB |
IP68 dynamic |
Applications:
This Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
|
MECHANICAL DATA |
|
|
Key |
70keys, super quality SUS304 brushed stainless steel |
|
Key top style |
Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available |
|
Key Size |
11.0mm x 10.0mm for no |
