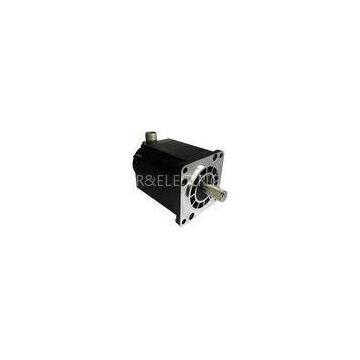

Electronic 3 Phase Step Motors High Torque NEMA 42 110BYGH 1.2 Degree

Delivery Time:FOR SAMPLES , 7-10 days For batch . 15-25days.
Certification:CE,ROHS ,ISO9001

Electronic 3 phase step motor high torque NEMA 42 110BYGH 1.2 Degree

   Nema 42 Hybrid Stepper Motor   Model Number: 110BYG350   Phase: 3 Phase   Structure: Hybrid   Step Angle:  1.2°   Motor Height:110mm    Holding Torque: 8 N.m- 25 N.m   Function: Control   Speed: Low or High speed   Usage: Industrial   Shape: Square     Certification: CE, ROHS, ISO9001   Applications:Use for robots stepper motor, electronic automatic equipment stepping motor ,  medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor

110mm 3phase high torque hybrid stepper motor  NEMA42 /110BYG350A,110BYGH350B,110BYG350C/ high torque 110mm step motor/220v input Step motor/110v input stepping motor

Description:

NEMA42stepping motor , 110mm 3 Phase  stepper motor .21N,M Stepper motor , high torque stepper motor with 110mm size . 28 N.m stepping motor

Applications:

Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.

Specifications:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	Motor Length
( °)	(L)mm	A	Ω	mH	N.m	Kg
JK110H3P-3008	1.2	102	3	3.15	17	8	5
JK110H3P-3013	1.2	132	3	4.2	22.6	13	6.6
JK110H3P-5016	1.2	183	5	2.14	17.5	16	9
JK110H3P-5020	1.2	220	5	2.4	24.4	20	11.1
JK110H3P-5025	1.2	250	5	2.9	27	25	13

Dimensions:

(Unit=mm)

Wiring Diagram:

Matching Stepper motor Driver: JK3M2208
