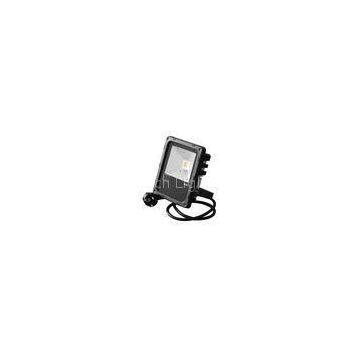

Commercial Building Lighting High Power LED Flood Light Fixtures DC 12V - 24V 10W

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	S-Tech, Lightingtalk		Place of Origin	China
Model Number	FLA-SC10WB

Product Description

Delivery Time:3~7days
Certification:CE/RoHS/C-tick/SAA

Commercial building lighting High Power LED Flood Light Fixtures DC 12V - 24V 10W

Quick Detail:

Model Number: FLA-SC10WB Item Type: Flood Lights Light Source: Epistar COB LED chip Lamp Body Material: Aluminum Alloy+ toughened glass+ ASA Industrial plastic+ Japan DENKA HITT PLATE or HITACHI Thermal Conductive PCB+ 0.8m H05RN-F rubber cable Power: 10W±5% Input Voltage: 100~240V AC / 50~60 Hz Lamp Luminous Efficiency: >80lm/w IP Rating: IP65 Certification: CE, RoHS, C-tick,, SAA Warranty: 3 years

Description:

Product: 10W led floodlight IP65 COB Model Number: FLA-SC10WB Lamp Body Material: high quality aluminum alloy+ ASA Industrial plastic+ durable toughened glass, the light transmittance is about 93% Light Source: high brightness and COB led Input Voltage: 100~240V AC / 50~60 Hz Power: 10W±5% Lamp Luminous Flux(lm): 800Lm±10% Lamp Luminous Efficiency(lm/w): >80lm/W CRI (Ra>): >75 Color Temperature: Warm White(3000K), Natural White(4000K), Cool White(5000K), Cold White(6000K) Beam Angle: >120° Working Temperature: -20℃~40℃ Storage Temp. : -40℃~65℃ Lifespan @25℃: 40,000hrs IP Rating: IP65 Certification: CE, RoHS, C-tick,, SAA Warranty: 3 years N.W.(g): 760g

Applications:

Widely used in the lighting of government project, billboards, bridges, squares, stadiums, trees, building walls, metro station, flyover, park and so on.

Specifications:

Rated Voltage (VAC/Hz)	100~240VAC / 50~60 Hz
Wattage (W)	10W
Power Factor (PF)	>0.90
Lumen(Lm)	700-800Lm
Beam Angle	>120°
Flux(Lux)@2M	70Lux
Lifespan (hrs) @25°C	40,000hrs *
Ambient Temp. (°C)	-20°C~40°C
Storage Temp. (°C)	-40°C~65°C
N.W.(g)	760g
Warranty	3years
IP Rating	IP65

Item B:SMD LED	CCT(K)	CRI(%)	Lumen(Lm)	Flux(Lux)@2M
FLA-SC10 floodlight R70	3000K	＞70%	700Lm	65lux
FLA-SC10 floodlight T70	4000K	＞70%	750Lm	67lux
FLA-SC10 floodlight V70	5000K	＞70%	780Lm	68lux
FLA-SC10 floodlight W70	6000K	＞70%	800Lm	70lux

Dimension:

Length A	Length B	Length C	Length D	Length E
133mm	157mm	89.4mm	75.5mm	57mm

Packing Criterion: Qty/CTN:12pcs

Net Weight:760g

Gross Weight: 11Kg

Inner Box: 210×142×68mm

Outside
