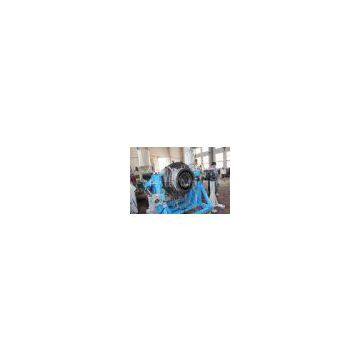

Stainless Steel PE Plastic Pipe Extrusion Machine Plastic Extruders Of Two Layers
Quick Detail of high effective composite pipe production line PE PIPE two layers :
Pe pipe two layers co-extrusion line
Two material can change ratio
CE&ISO certificate
Description of high effective composite pipe production line PE PIPE two layers :
Multi-layer PE pipe extrusion, co-extrusion; this is to make pipe more strong, can stand high and low temperature.
With two layers co-extrusion, outer layer is new material, inner layer is recycle material; This line is also suitable to produce three layers PP-R pipe co-extrusion.
Flow: vacuum feeding -- material dryness --single screw extruder -- single screw extruder -- -- color string extruder -- spiral co-extrusion mould --calibrator -- spray vacuum calibration tank -- spray cooling water tank -- spray-code printer -- belt haul-off -- no-dust cutter –Pipe Stacker for package
If you need more information from this extrusion line, please send me inquiry!
1. The optimum spiral structure feeding throat highly improves the output of extruder
2. Accurate temperature control system ensures materials melting performance
3. Unique screw design achieves better plasticizing and high quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. \"H\" shape frame to decrease vibrating of extruder
6. Advanced PLC operation system realizes synchronization and automation
7. Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks
8. Offer stable haul-off unit with 2-12 caterpillars
9. Provide saw & chip-free cutting options
10. Low energy consumption, excellent performance, and easy maintenance
Applications of high effective composite pipe production line PE PIPE two layers :
Uesd to produce PE/PERT/PPR/PEX/PB/AD/EVOH pipe production .
According to customer requirements,use different length clibration tank.Save input.
Specifications of high effective composite pipe production line PE PIPE two layers :
|
Pipe diameter(mm) |
16-63 |
20-110 |
75-160 |
90-250 |
110-315 |
160-450 |
315-630 |
500-800 |
|
Extruder |
SJ45 |
SJ60 |
SJ75 |
SJ75 |
SJ90 |
SJ90 |
SJ120 |
SJ150 |
|
Motor power(KW) |
AC30 |
DC75 |
DC110 |
DC110 |
DC160 |
DC160 |
DC280 |
DC335 |
|
Capacity(KG) |
60-100 |
100-150 |
250-300 |
250-300 |
350-400 |
350-400 |
650-700 |
850-900 |
|
Max line speed(m/min) |
10 |
6 |
6 |
6 |
3 |
1.2 |
0.9 |
1.7 |
Competitive Advantage of high effective composite pipe production line PE PIPE two layers :
We have produced PE co-extrusion PIPE extrusion machine for several years with very professional experience.
304 stainless steel made,ABB inventer .Wannan motor.
Made more stronger for standard parts. It can use for much more long time.
Meet with CE standard.
