350mA 9V - 11V Genesis LED Chip , 3Watt Genesis COB LED Module

Delivery Time:5-10 days
Certification:CE|RoHS

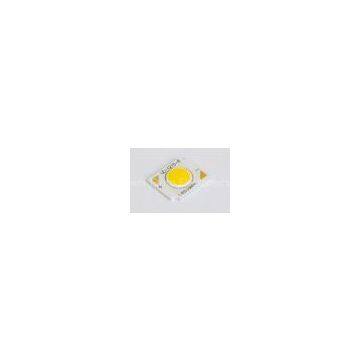

Genesis 3W COB led for spotlight (COB 1215 )

Quick Detail:

3W power consumption COB package, 12mmx15mmx1mm, D7.5mm Genesis LED chip, chip material InGaN High light efficiency 95-105lm/W, Ra>80 9-11V input voltage, 350mA current 2800-6500K available CE, RoHS compliance 2 years warranty

 350mA 9V - 11V Genesis LED Chip , 3Watt Genesis COB LED Module

Description:


High quality imported aluminum led base, super reliability Genesis led chip, Shin-Etsu silicon gel, good performance High light efficiency, high CRI Good heat dissipation, low thermal resistance Mature technique, no light spot, no dizzy light. 7.5mm lighting dimension, suitable for bulb or spotlight Match with Lepower exclusive lens, get higher transmittance

Applications:


Bulb Spotlight

Specifications:



Package Dimension


Characteristics(Ta=25°C)


Characteristics	Unit	Minimum	Typical	Maximum
Reverse current	mA	--	---	0.1
Junction-to-base thermal resistance	°C/W	--	1	--
LED Junction Temperature	°C	--	---	120
Viewing angle	degrees	--	120	--
Ra	CRI	80	--	--
R9	/	--	10	--

POWER	CCT(K)	BIN code	Part  NO.	Typical
IF(mA)	VF(V)	Lm/w
3W	2800-3000	WD	LY-IC320308T1428-80	350	9	95
4000-4500	NB	LY-NC320308T1428-80	350	9	105
5000-5500	CH	LY-CC320805T1428-80	350	9	105


Competitive Advantage:

Imported aluminum led base, more reliable than ordinary aluminum material. Exclusive Genesis 33mil high brightness led chip. 1.2mil 99.99% gold wire, without any problem with wires. World’s top brand materials and mature technique ensure outstanding quality.


Shenzhen Lepower Opto Electronics Co., Ltd. was founded in 2005. Our company is a wholly owned subsidiary of Liyang Electronics (HK) Limited. We are state-level key high-tech enterprise mainly engaged in developing, producing and selling the high power LEDs and LED lighting applications.
We are committed to the research and development and industrial production of high brightness, lower energy consumption, long time span, good stability and high reliability high power LED
We offer services with LED design a
