USB/MPI PC Adapter USB for Siemens S7-200/300/400PLC,MPI/DP/PPI Programming

Description:

Model: 6ES7972- 0CB20 - 0XA0 Package: cable + box + CD-ROM (included driver and tutorial ) Color: Black

Length: approximately 5 m

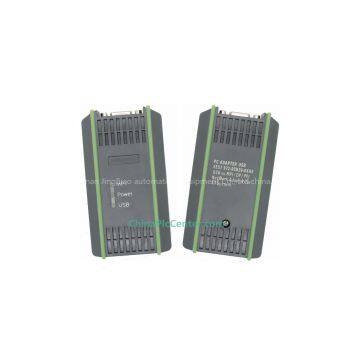

PC adapter USB is the optoelectronic isolated adapter for industrial design. There is anti-surging& anti-lightning protection for the USB and RS485 interface. It support hot plug. Its suitable for S7-300/400/200 series PLC. In particular, it applies to the strong interfere industrial scene and the safeguard in the circuit guarantees the safely running of the system.

WIN7 32bit, STEP7 V5.4 test is successful

Feature:

• Siemens style design

• Support S7-200/300/400.

• Support PPI/MPI/DP multiple-station communication.

• Full optoelectronic isolated, better anti-interruption ability, more stable communication.

• Installing original Siemens drive with USB interface directly, no need to creat COM.

• Supports full rate 9600,  19200, 45.45K,  93.75K,  187.5K, 500K,1.5M kps, auto adaptable

• Characteristics and technical index:

• Suppert Win7 32 bit, Professional Edition, Ultimate Edition,Software to use the STEP7 V5.4

• Does not support PROFIBUS

• NOT With shockproof green bar. With a CD-ROM drive.

• Siemens Original USB2.0 drive.

The support of the 6ES7972-0CB20-OXAO operating system (32): Windows2000/XP/Vista/Win7

power: USB bus power supply, power consumption of about 100mA, with over current protection and surge protection

optical isolated voltage: 1000VDC (up to 3000VDC, when ordering specify)
 USB port with anti surge protection
 RS485 port has a lightning strike surge protective device, the repeatability of surge capacity: Ipp=100A (10/700us, 4KV)
Standard: ITU-TK20/21, VDE 0433. 15KV ESD (electrostatic) protection
 flow since the restoration of protection, RS485 port can withstand up to 60V voltage induced by continuous current
 support MPI baud rate: 19.2Kbps, 187.5Kbps automatic adaptation
 support PPI baud rate: 9.6Kbps, 19.2Kbps, 187.5Kbps automatic adaptation
 support for long distance communication, maximum communication distance of 1000 meters (RS485 end, baud rate is 187.5Kbps)
With the power indicator, data receiving, data is sent indicating lamp indicator lamp
 working temperature: -20 ~ +75

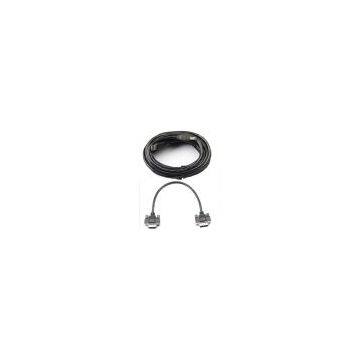

Package Includes:
1x PC Adapter USB.
1x USB extension cable 5M
1x DB9 cable 0.3M
