Simple Cold Roll Forming Machine C / Z Shape Purlin Exchange 20m/min
Quick Detail:
C&Z shape purlin exchange roll forming machine
1, Material thickness: Q235 1.5—3mm
2, Distance of punching hole side-to-side adjustment range: 45~500mm
3, Length: >3m
Description:
1. The semi-automatic C/Z purlin machine uses one equipment to be possible to produce the C/Z
purlin through the manual simple stepless regulation different kinds of size, when the size change
does not need to replace the forming roller. The production process selects the automatic control
method, may according to parameters input purlin length, longitudinal pitch of holes, quantity and
so on to carry on the automatic punch holes, the cutting and roll forming.
2. The C/Z purlin machine consists with the guider, leveler, hydraulic hole punch device, the
hydraulic cutting device, fast roller exchange forming machine, the electric controlled syste
and hydraulic system etc.
3. The main drive of the whole line uses a reducer with the frequency conversion to control, the
speed control, length setting and the localization control are accurate and reliable.
4. The complete machine contour artistic, production efficiency high, ( the forming speed can reach
20m/min)
Functions and Features:
1. The semi-automatic C/Z purlin machine uses one equipment to be possible to produce the C/Z
purlin through the manual simple stepless regulation different kinds of size, when the size change
does not need to replace the forming roller. The production process selects the automatic control
method, may according to parameters input purlin length, longitudinal pitch of holes, quantity and
so on to carry on the automatic punch holes, the cutting and roll forming.
2. The C/Z purlin machine consists with the guider, leveler, hydraulic hole punch device, the
hydraulic cutting device, fast roller exchange forming machine, the electric controlled system
and hydraulic system etc.
3. The main drive of the whole line uses a reducer with the frequency conversion to control, the
speed control, length setting and the localization control are accurate and reliable.
4. The complete machine contour artistic, production efficiency high, ( the forming speed can
reach 20m/min)
Specifications:
1, Material thickness: Q235 1.5—3mm
2, Distance of punching hole side-to-side adjustment range: 45~500mm
3, Length: >3m
4, Max. forming speed: 20m/min
5, Total motor power about: 20KW
6, Forming station: 17 sets
Competitive Advantage:
1. our machines are famous for good quality and inexpensive ,
2. we can supply good after sevice .
3. one year guarantee.
4. We can design the machines according to customers’ special requirement .
5. We have professional team for service.

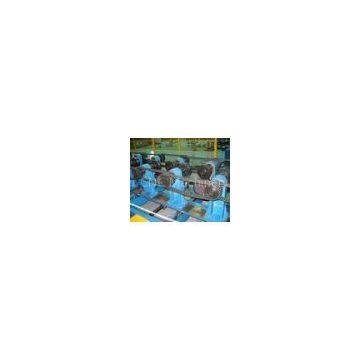

PHOTOS:
