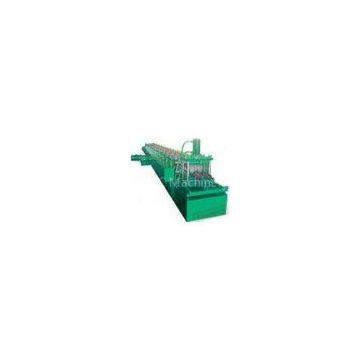

7.5KW Highway Guardrail Cold Roll Forming Machine With Electrical Cutting
Quick Detail:
1. Highway guardrail roll forming machine
2. Maximum height of profiles formed: 85mm
3. Maximum thickness: 4.0mm
Description:
Forming processing:De-coiler--- flatting --- punching --- fast feeding --- opto-electrical cutting --- forming
--- alignment device --- collection --- controller --- forming moulds
Functions and Features:
1, Total power of equipment is 90kw
2, Maximum height of profiles formed: 85mm
3, Maximum thickness: 4.0mm
4, Maximum forming speed: 15m/min
5, The welding machine body structure must conform to the requirement, the welding must conform
to the national welding standard.
6, The equipment after antirust processing, brush antirust paint first, the antirust paint must cover
comprehensively, then brush the high quality finish paint. The movable part shows the different
color for caution.
Specifications:
1. Equipment parameter:
De-coiler
a. The un-coiler with bipyramid and tension power,
b. Loading 8T. Inner diameter of coil: φ508mm,
c. Maximum diameter of coil: φ2000mm,
d. Power of tension power: 2.2kw,
2. Flatting machine
a. The wall plate type seven roller flatter, two rollers clamp deliver, five rollers for leveling.
b. Power: 7.5kw,
3. Punching machine
a. Using type Yl32-315 4 pillar hydraulic pressure punching machine,
b. Hydraulic pressure power: 22kw.
c. Material of blade mould & plunger chip is alloying steel Cr12MoV.
4. Fast feeding
a. Initiative delivers.
b. The power disposition is the 2.2KW.
c. The reductor is ZQ250.
5. Opto-electrical Cutting device
Forming machine
a. Forming racks: 12sets
b. Cast iron torri type
c. Width of machine: 550mm
d. Material of torri is HT200, tempering
e. Double axis transmission gear box 1set, under the axis transmission gear box 10set, bevel
gear modulus M=9, material of gear box is only HT200.
f. Power of main machine: 55kw, transducer speed governor. ZQ650, reductor, speed ratio:48.57,
Between the transmission gear box uses 1 inch double chain drive; Connects with the rotary drive
shaft between rollers, rotary drive shaft model 140-275; Uses 1.5 inch double chain drives with the
speed reducer;
g. Collection table
6. Control system
Production line uses PLC controller, opto-electrical device control cutting. But manual and
automatic control whole production line for each part coordination.
7. Forming mould
Material is GCr15. Whole quenching hardness is HRC58 º ~62
Competitive Advantage:
1. our machines are famous for good quality and inexpensive ,
2. we can supply good after sevice .
3. one year guarantee.
4. We can design the machines according to customers’ special requirement .
5. We have professional team for service.
PHOTOS:
