Item No.: GPAL

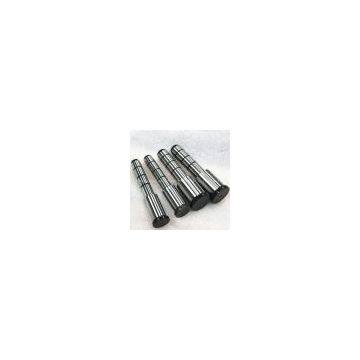

Item Name: High Precision Threaded Oil Grooves Guide Pins with Head
Material: SUJ2
Type: Head
Pattern: Threaded Oil Grooves
Size: Custom Made
Color: Original
Heat Treatment: High Frequency
Hardness: 60-62HRC
Roundness: 0.002mm
Roughness: As Requested
Tolerance: Within 0.002mm
or as clients' requests
Standard: JIS,
DIN, AISI (Custom Made)
Application: Moulds
Description:
1. Made from high quality, wear resistant and long lasting
hardened steel materials.
2. Hardened steel threaded oil grooves guide pins with
great hardness and excellent performance.
3. Super glossy finish and close tolerance hardened steel guide
pins.
4. Custom
made high frequency precision oil grooves guide pins for mold spare parts.
5. Consistent quality control and fast delivery.
6. More products can be produced according to
"MISUMI","PUNCH", "DANLY", "DME",
"HASCO", "TOHATSU", "FIBRO", "AGATHON",
"STRACK", "PEDROTTI", "RAYMOND", "FUTABA","SANKYO",
"PROGRESSIVE", "RABOURDIN", etc., or as customers'
drawings.
Process (Threaded Guide Pins):
Sawing material- Lathing (CNC Lathe, Common Lathe, Meter
Lathe)-Drilling Holes- Tapping- Heat Treatment- Sand Blasting- Drilling
(Central Hole)- Grinding (Rough or accurate grinding)- Grinding (Precision
Centerless Grinding)
