Item No.: GVGPR

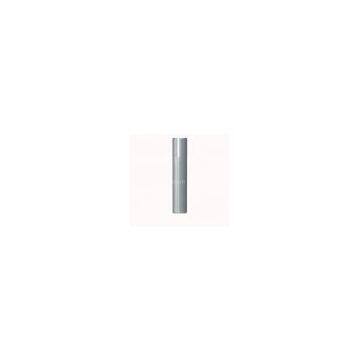

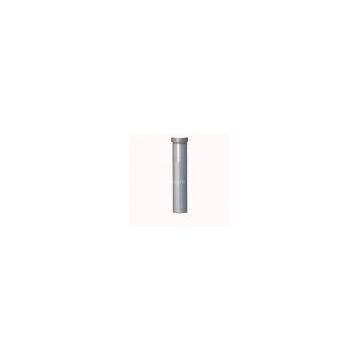

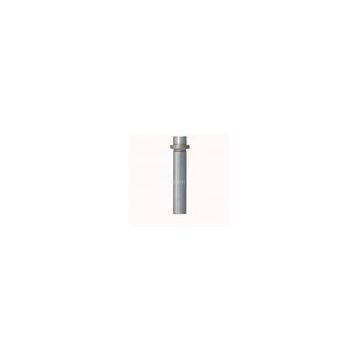

Item Name: Heat Treated Shouldered Leader Guide Pin for
Mould Spare Parts
Material: Steel
Type: Shouldered
Size: Custom Made
Color: Original
Heat Treatment: High Frequency
Hardness: 60-62HRC
Roundness: 0.002mm
Roughness: As Requested
Tolerance: 0.002mm or as
clients' requests
Standard: JIS, DIN, AISI (Custom Made)
Application: Moulds
Description:
1. Made from high quality, wear resistant and long lasting hardened steel
materials.
2. Hardened steel shouldered leader pins with great hardness and excellent
performance.
3. Super glossy finish and close tolerance hardened steel leader guide pins.
4.
Consistent quality control and fast delivery.
5. More products can be produced according to
"MISUMI","PUNCH", "DANLY", "DME",
"HASCO", "TOHATSU", "FIBRO", "AGATHON",
"STRACK", "PEDROTTI", "RAYMOND",
"FUTABA","SANKYO", "PROGRESSIVE",
"RABOURDIN", etc., or as customers' drawings.
Process (Leader Guide Pins):
Sawing material- Lathing (CNC Lathe, Common Lathe, Meter Lathe)-Drilling Holes-
Tapping- Heat Treatment- Sand Blasting- Drilling (Central Hole)- Grinding
(Rough or accurate grinding)- Grinding (Precision Centerless Grinding)
