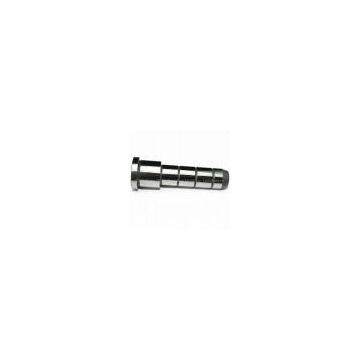

Help CenterHardened Stepped Guide Pins With Oil Grooves for Plastic Molds
Related Products
-
High Precision Threaded Spiral Oil Grooves Guide Pins With HeadUS$ 3.65 - 3.65MOQ: 10 Pieces -
Precision Shoulder Leader Guide Pins With CollarsUS$ 6.25 - 6.25MOQ: 10 Pieces
-
Shouldered Guide Posts With Oil Grooves for Die SetsUS$ 2.25 - 2.25MOQ: 10 Sets
-
Hardened Steel Head Oil Groove Guide PostsUS$ 1.25 - 1.25MOQ: 10 Pieces
-
Headless Guide Posts for Die and Mould PartsUS$ 1.20 - 1.20MOQ: 10 Pieces
Item No.: GPBL
Item Name: Heat Treated Stepped Guide Pin for Plastic Mold Parts
Material: Steel
Type: Stepped
Pattern: Oil Grooves
Size: Custom Made
Color: Original
Heat Treatment: High Frequency
Hardness: 60-62HRC
Roundness: 0.002mm
Roughness: As Requested
Tolerance: Within 0.002mm
or as clients' requests
Standard: JIS,
DIN, AISI (Custom Made)
Application: Molds
Description:
1. Made from high quality, wear resistant and long lasting
hardened steel materials.
2. Hardened steel stepped guide pin with great hardness and
excellent performance.
3. Super glossy finish and close tolerance hardened steel guide
pin.
4. Custom made high frequency oil groove guide pin with two steps for plastic molds.
5.
Consistent quality control and fast delivery.
6. More products can be produced according to
"MISUMI","PUNCH", "DANLY", "DME",
"HASCO", "TOHATSU", "FIBRO", "AGATHON",
"STRACK", "PEDROTTI", "RAYMOND",
"FUTABA","SANKYO", "PROGRESSIVE",
"RABOURDIN", etc., or as customers' drawings.
Process (Stepped Guide Pin):
Sawing material- Lathing (CNC Lathe, Common Lathe, Meter
Lathe)-Drilling Holes- Tapping- Heat Treatment- Sand Blasting- Drilling
(Central Hole)- Grinding (Rough or accurate grinding)- Grinding (Precision
Centerless Grinding)
