Certification:UL, CE

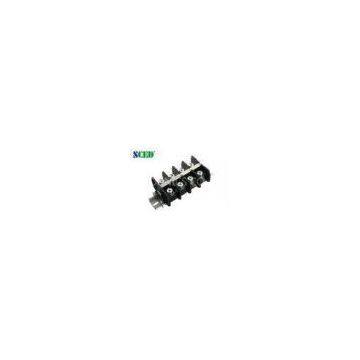

2P - 24P 101A 600V High Current Barrier Terminal Block Connector, Pitch 27.00mm
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
How to order:
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 150 |
600 / 150 |
|
|
Wire Range AWG |
2/0-20 |
2/0-20 |
|
|
IEC Technical Data |
|||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 150 |
1000 / 150 |
1000 / 150 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
60 |
||
|
Material |
|||
|
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|||
|
Stripping Length mm |
12-14 |
||
|
Screw / Torque / lbf.in |
M8 / 31-40 |
