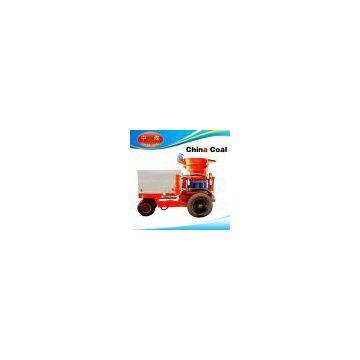

KSP-9 Wet Concrete Spraying Machine

KSP-9 wet concrete spraying machine

Product Introduction

KSP-9 type wet concrete jet has a novel structure, easy to use, reasonable price and so on. The aircraft used for spraying concrete operations, can greatly reduce the dust concentration and spring rate, increasing the thickness of a spray, improve production efficiency, and ensure project quality. Special vibration hopper can successfully enter the concrete batching system. Standard metering pump to accurately add accelerator. Conveying speed vortex flow of low pressure, the working principle of injection close to overcome the plugging pulse, segregation problems. The injection material flow uniform and stable. Improve spray layer material.

KSP-9 gunite machine used pressure spray gun with a fine stone pouring concrete construction method. Commonly used in pouring the tunnel lining, wall, ceiling, wall structure, or other structures such as the lining and the steel layer of protection.

Feature

1. high quality, reliable work, stable performance, easy to operate.

2. covers the explosion-proof, non-explosion of different machines, adapt to different work environment.

3. walk way with rubber tire, rail wheels (rail distance = 600mm, 762mm, 900mm) tires and other forms, for easy selection.

4. using the new composite compression spring, seal better.

Technical Parameter

Working capacity 9m3/h
Concrete Mix Ratio 1:4-5C/A
Water-cement ratio ≤0.4
Max conveying distance 30m
Max aggregate dia　　 Φ20mm
Conveying pipe diaΦ51mm/Φ64mm
Air pressure 0.2-0.4Mpa
Air consumption 10-12m3/min
Feeding height 1.1m
Motor power 7.5KW
Voltage class 380V
Machine weight 850kg
