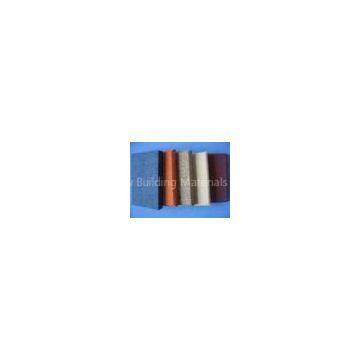

Red Or White Heat Insulation , Acoustic Fiberglass Panels 600 * 600 mm For Classroom

Quick Detail:

non-combustible

no sagging, warpping or delaminating

green building material

excellent sound absorption

easy to install

Description:

Material: torrefaction compounded high density fiberglass wool

Face: special painting laminated with decorative fiberglass tissue

Color: white, black and others to order

Fire-resistant: Class A, non-combustible according to GB9624-1997, tested by china’s authority inspection center

Thermal-resistant: ≥0.4(m2·k/w)

Humidity: dimensionally stable with RH up to 95％ at 40℃, no sagging, warpping or delaminating.

Moisture rate: ≤1％(JC/T670-2005)

Enviromental impact: tiles and packings are fully recyclable.

Safety: limit of radionuclides in building materials, specific activity of 226Ra: Ira≤1.0, specific activity of 226 Ra, 232Th, 40K: Ir≤1.3

Applications:

halls, classrooms, offices, shopping centers, etc.

Specifications:

Thickness:12mm,15mm,20mm,25mm

Size:595*595mm , 600*600mm , 600*1200mm

Description

The tiles are manufactured from high density fiberglass wool. The visible side is warpped with decorative fabric and the back is covered with normal fiberglass tissue. The four edges can be square or bevel.

Application

It is recommended that the tiles be installed to the opposite two walls to control the echo of the surroundings. The tiles are widely used in hotels, meetings rooms, music rooms, etc., where have special request for sound absorption.

Dimensions can be ordered upon customer’s requests.

600*600*25mm

600*1200*25mm

600 X 2700*25mm

Installation method:

Use wooden or steel grids, easy to trim and reinstall

Stick by glue, convenient and economical.

Use wall clip or hanging device, dismountable.

Competitive Advantage:

Fire-resistant: As fiberglass consists of rock fibers, which are combustible. So both basic board and decorative facing of Ecopan panel has achieved Class A fire-resistant property, which has tested by National Authority of China.

Thermal-insulation: Block off the colds outdoor and prevent hear from spreading in or out from indoors. It can make energy-saving and also to create a quiet and comfortable environment.

Humidity: Dimensionally stable in high humidity, no sagging, warpping or delaminating compared with normal wet-craft made mineral wool acoustical panel.

Elegant: Standard quiet white facing, personalized designs will give you a fashionable and comfortable visual feeling. Also other various colors can be ordered.

Cleanability: Special painting on the facing make Ecopan fiberglass panel can be longtime used and seldom absorb dust or Vacuum. You can clean the face with eight wet or dry mop.

building material. Fully recyclable.

Safety and Convenience: No safeguards are needed for the insulation. The working site will still keep clean and tidy as no fibers will fall off. Either exposed or concealed grids are available for the installation. Because of the light weight, the panels are widely used in constructions with large spans in space, such as gymnasiums, exhibition halls, shopping centers, etc. They are easy to trim and install.

Use exposed grids, grids width:15mm or 24mm

Tiles are easy to trim and install.

Both inches and centimeters grids are available.

What is acoustic insulation? Most people think if we just block off the noises outdoor that is acoustic insulation. Actually it is not perfectly right. Acoustic insulation works by absorbing sound and vibrational energy. The key principle is to convert sound energy into kinetic energy. Glasswool is a good sound insulator because the flexing action of the fibers absorbs the sound and dissipates it in a form of heat energy if such low density as to be virtually undetectable. Glasswool has excellent sound absorption characteristics and with complementary building materials. It enhances the performance if a structure by minimizing the passage of sound. Acoustic irritation is reduced and hearing protected. So galsswool-made products are widely used in places such as mansions, exhibition halls, hospitals, etc., where have special requests for sound proofing, noises control or acounstic insulation. This is also why more and more designers would like to choose fiberglass wool-made products into their designs.

Ecopan fiberglass panel is
