Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor > HEPMB Steel Billet Lifting Magnet
US$ 1000 - 8000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HVR MAG
Place of Origin:
China
Model Number:
HEPMB
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
HVR MAG
Place of Origin
China
Model Number
HEPMB

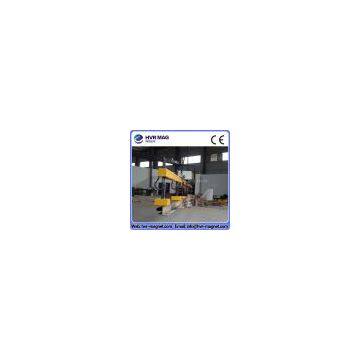

HEPMB Series For Lifting Steel Billets
The HEPMB series EP magnets are adopted by rectangle magnetic poles and working air-gap, and widely used in single or joint lifting steel billets, heavy rail in rows materials.
Main technical parameters
| Typel&Data | Rated lifting capacity(kg) | Overall dimension(mm) | Weight(kg) | Lifting samples | |||||||||
| A | B | C | D | H | |||||||||
| HEPMB-7530 | 1300 | 710 | 350 | 250 | 400 | 655 | 472 | steel billets | 100 | 120 | 130 | 150 | 200 |
| Max number of roots | 6 | 5 | 4 | 4 | 3 | ||||||||
| The length of a singleload(m) | 2.78 | 2.31 | 2.14 | 1.85 | 1.4 | ||||||||
| HEPMB- 10040 | 2300 | 1000 | 400 | 270 | 600 | 675 | 745 | steel billets | 100 | 120 | 130 | 150 | 200 |
| Max number of roots | 9 | 7 | 7 | 6 | 4 | ||||||||
| The length of a singleload(m) | 2.78 | 2.78 | 2.57 | 2.22 | 1.67 | ||||||||
| HEPMB-7070 | 2600 | 700 | 700 | 250 | 400 | 655 | 945 | steel billets | 100 | 120 | 130 | 150 | 200 |
| Max number of roots | 6 | 5 | 4 | 4 | 3 | ||||||||
| The length of a singleload(m) | 5.56 | 4.63 | 4.3 | 3.7 | 2.78 | ||||||||
| HEPMB-10080 | 4500 | 1000 | 800 | 280 | 600 | 690 | 1500 | steel billets | 100 | 120 | 130 | 150 | 200 |
| Max number of roots | 9 | 7 | 7 | 6 | 4 | ||||||||
| The length of a singleload(m) | 5.56 | 5.56 | 5.14 | 4.45 | 3.34 | ||||||||
| HEPMB-12080 | 5700 | 1200 | 800 | 250 | 800 | 690 | 1800 | steel billets | 100 | 120 | 130 | 150 | 200 |
| Max number of roots | 11 | 9 | 8 | 7 | 5 | ||||||||
| The length of a singleload(m) | 5.56 | 5.56 | 5.14 | 4.45 | 3.34 | ||||||||
| HEPMB-14080 | 6800 | 1400 | 800 | 280 | 800 | 690 | 2100 | steel billets | 100 | 120 | 130 | 150 | 200 |
| Max number of roots | 13 | 10 | 10 | 8 | 6 | ||||||||
| The length of a singleload(m) | 5.56 | 5.56 | 5.14 | 4.45 | 3.34 | ||||||||
| HEPMB-16095 | 9800 | 1600 | 950 | 280 | 1000 | 720 | 2730 | steel billets | 100 | 120 | 130 | 150 | 200 |
| Max number of roots | 15 | 12 | 11 | 10 | 7 | ||||||||
| The length of a singleload(m) | 5.56 | 5.56 | 5.56 | 5.56 | 4.17 |
