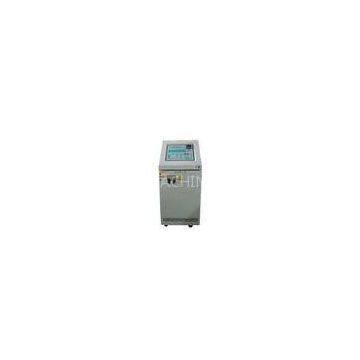

Direct Cooling Extruder Water Temperature Control Units / Controller with 120 Degree
Quick Detail:
1. Temp. Control accuracy: PID±1℃
2. Range of temperature control:+15℃-120℃ for incoming water
3. Certification:CE & ISO
4. Controller:microcomputer
5. Heating capacity: 9KW
6. Maximum power consumption: 11KW
7. Alarm function:Excess temperature, open phase, oil starvation, overloading, reverse turn
Description:
Explosion-proof equipment(optional) Air blowing and return water function(optional) Thermometer for return water Automatic air-exhausting function after startup Switchover of heating power Instant cooling shut-down function(optional) RS485 communication function for automated management(optional) BY-PASS pressure release loop for hot water Customizable multi-point temperature control unit Customizable horsepower and heating power of water pump Brands OMRON, FUJI, TE, LG, MOELLER, ABB, and WEST for electric appliances Range of temperature control: +15℃-180℃ for incoming water Stainless steel integrated pipelines for less pipe resistance and rust Control mode: imported microcomputer or PLC(optional) Perfect safety protection, fault display, easy repair and maintenance even free of professionalsSpecifications:
|
ITEM |
UNIT |
AWM-20 |
|
Temp control range |
℃ |
Inlet water temperature +15℃-120℃ |
|
Temp control accuracy |
℃ |
PID±1℃ |
|
Power supply |
AC3∮380V 50HZ 3P+E(5M) |
|
|
Heat transfer medium |
Water |
|
|
Cooling method |
direct Cooling |
|
|
Heating capacity |
KW |
9 |
|
Horsepower of pump |
hp |
2 |
|
Working flow of pump |
L/min |
150 |
|
Working pressure of pump |
Kg/cm2 |
1.8 |
|
Max. power consumption |
KW |
11 |
|
Alarm function |
Open phase/water depletion/excess temperature/overloading/reverse turn |
|
|
Cooling water pipe |
inch |
1/2 |
|
Circulating water pipe |
inch |
3/8×4 |
|
Size(L×W×H) |
mm |
620×325×645 |
|
Weight |
kg |
75 |
Competitive Advantage:
1. Our core competitiveness:advance technology,the pioneer of TCU industry, Convenient and efficient nationwide service network
2. Customization thick copper pipe 1.0-1.2
3. Our core concept:Innovation, high-quality, integrity, service, focus
4. High density heat insulation cotton and aluminum foil
5. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST
6. The thickness of our machine rack is 1.2mm.
7. Strict quality control system
8. We have the production certification organic heat transfer material heater
Applications:
Injection industry
Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic Injectio
