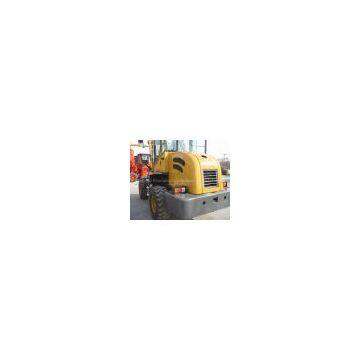

ZL16F Wheel Loader With 1m3 Bucket Capacity

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2007

Factory Size:

3,000-5,000 square meters

Qingdao Promising International Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Model: ZL16F
	Item	Parameters
Performance	1 .Rated Load	1600 kg
2. Total Weight	3900 kg
3. Rated Bucket Capacity	0.7 - 1.0 m³
4. Max. Tractive Force	30 KN
5. Max. Breakout Force	≥ 32 KN
6. Max. Gradeability	38°
7. Max. Dumping Height	2800 mm/3200 mm
8. Max. Dumping Reach	1000 mm
9. Raising Time	≤ 5.0s
10. Total Cycle Time	≤ 9.5 s
11. Overall Dimensions (L x W x H)	506016902630 mm
12. Min. Turning Radius	3200 mm
Engine	13. Model	WEICHAI HUAFENG ZHBG14-A / Cummins B3.3 (EPA Tier IV)
14. Type	Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine
15. Rated Power	44 kW / 45 kW (60 HP)
16. Rated Speed	2200 rpm
17. Min. Fuel Consumption Ratio	≤ 230 g/kw·h
Transmission	18. Hydraulic Torque Converter	ZL265 Integrated Torque Converter
19. Gear Shift	1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
20. Max. Speed	25 km/h
Drive Axle	21. Model of Axle	ZL16 Hub Reduction Axle (small)
22. Wheel Tread	1430 mm
23. Wheel Base	2170 mm
Drive	24. Mode	4-wheel Drive
Hydraulic System	25. System Working Pressure	16 Mpa
26. Fuel Tank Capacity	90 L
Brake System	27. Service Brake	Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
28. Parking Brake	Hand Lever Flexible Shaft Controlled Disc Brake
Tyre	29. Type Specification	14-17.5-14PR
30. Front Tyre Pressure	0.40 Mpa
31. Rear Tyre Pressure	0.35 Mpa
