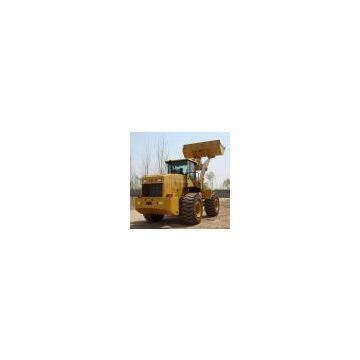

ZL50F Wheel Loader With 3M3 Bucket Capacity

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2007

Factory Size:

3,000-5,000 square meters

Qingdao Promising International Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Model: ZL50F
	Item	Parameters
Performance	1. Rated Load	5000 kg
2. Total Weight	17100 kg
3. Rated Bucket Capacity	3.0 m³
4. Max. Tractive Force	152 KN
5. Max. Breakout Force	≥170 KN
6. Max. Gradeability	30°
7. Max. Dumping Height	3150 mm
8. Max. Dumping Reach	1250 mm
9. Raising Time	5.95 ± 0.2 s
10. Total Cycle Time	10.95 ± 0.5 s
11. Overall Dimension (L x W x H)	792030503400 mm
12. Min. Turning Radius	6640 mm
Engine	13. Model	WEICHAI STEYR WD615G.220
14. Type	In-line, Water Cooling, Dry Cylinder Fuel Injection Diesel Engine
15. No. of Cylinder-Bore/Stroke	6-126×130 mm
16. Rated Power	162 kW – 2400 rpm (220 HP)
17. Max. Torque	860 N.m
18. Min. Fuel-consume Ratio	≤215 g/kW·h
Transmission System	19. Hydraulic Torque Converter	YJ375 Hydraulic Torque Converter
20. Gearbox Mode	Countershaft Spur Gear Constant-Mesh Power Shift
21. Gear Shift	4 Forward Shift, 4 Reverse Shift
22. Max. Speed	38 km/h
Drive Axel	23. Main Reducing Mode	Bevel Gear Grade 1 Reduction
24. Hub Reduction Mode	Planetary Reduction Grade 1
25. Wheel Tread	2250 mm
26. Wheel Base	3200 mm
27. Min. Ground Clearance	450 mm
Hydraulic System	28. System Working Pressure	18 MPa
29. Fuel Tank Capacity	300 L
30. Bucket Automatic Leveler	Yes
Brake system	31. Service Brake	Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
32. Parking Brake	Hand Lever Flexible Shaft Controlled Disc Brake
Tyre	33. Type Specification	23.5-25-20PR
34. Front Tyre Pressure	0.4 Mpa
35. Rear Tyre Pressure	0.35 Mpa
