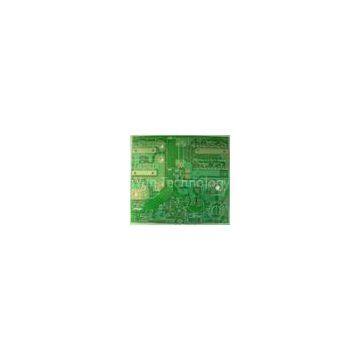

Professional FR-4 Double Sided pcb board plated through hole & pcb layout

Professional FR-4 Double Sided pcb board plated through hole & pcb layout   Specifications 1. FR-4 pcb
2.immersion gold surface finishing
3.short delivery time
4.small order are vailable
5.OEM are provided

Why do you choose XingdaYun ?

1. We have many years experience professional induction cooker PCB board supplier

2. Welcome your design, your logo can be printed in the PCB.

3. We offer MOQ and sampling service.

4. Our capacity can be 1000 square meter/square meters per month.

5. Sold makes types are according to your requirement (any color are available).

Our PCB Vision

Be the most reliable PCB and PCBA service supplier.

Our PCB Mission

1.Dedicate to satisfy customers\' needs.

2.Provide high quality products

3.Provide most professional services.

4.Deliver products on time.

5.Keep all costs to minimum and maximize our customers\' benefits.

The PCB capability

We focus on high quality including quick turn PCB prototype , small volume, mid &Big volume PCB.

Capability:

          -High Frequency (TACONIC material)/TG/Density/precision impedance controlled boards

          -Heavy Copper PCB, Metal based PCB. Hard Gold PCB, Blind &Buried vias boards,

           Halogen Free PCB, Aluminum-backed Boards

          -Gold finger+ HAL & Leadfree HASL PCB, Leadfree compatible PCB

Our Product range

We offer a wide range of PCBs such as single-sided, double-sided, multi-layer, high frequency, MCPCB, metal-backed PCB and so on.

We can do for you:

1-16 layer FR-4 PCB board, 1-2 layer Aluminum PCB

1-6 oz copper thickness

0.2 mm hole size

0.1 mm line width/space

Our PCB are using for wide range of electronic products, such as project, amplifier, CCTV, power supply, GPS, Safety ,camera, set-top box, medical device, Telecommunication, LED light and so on.

3, How can we help you?
What we offer is better solutions to help you improve your quality while maintaining low production cost and be your longtime partner.

4, Can I ask you three questions?
(1)Do you have plans to import printed circuit board this year?
(2)If so, do you have plan to find an supplier in China?
(3)How can I Be a qualified supplier for you?

If our PCBs can meet your requirements,welcome to receive your enquiry or trial order for testing our price and quality. We will quote to you the best price for your reference as soon as we receive your specific inquiry.

Manufacturer Capability

Material	FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant) /CEM-3, Aluminium, Metal based
Layer No.	1-16
Finished Board thickness	0.2 mm-3.8mm  (8 mil-150 mil)
Board Thickness Tolerance	±10%
Cooper thickness	0.5 OZ-6OZ (18 um-210 um)
Copper Plating Hole	18-40 um
Impedance Control	±10%
Warp&Twist	0.70%
Peelable	0.012\"(0.3mm)-0.02  (0.5mm)
Images
Min Trace Width (a)	0.075mm (3mil)
Min Space Width (b)	0.1mm (4 mil)
Min Annular Ring
