Product Description

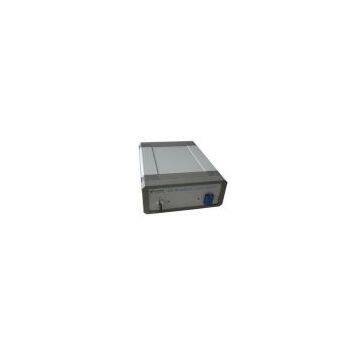

We provide ASE broadband light source module and ASE broadband light source bentchtop optional.
We provide highly stable and high power L band, C band, C+L band, 1um and 2um ASE broadband light source. The output power is as high as to 25dBm.
We also provide SLED light source.

Application:
Optical fiber sensing system source
Fiber sensor testing
Optical fiber grating, DWDM, filter testing
Optical fiber measurement equitment
Optical fiber sensing&communication experiment


parameter symbol unit value
      ASE-C-N  ASE-C-G ASE-CL-N
  λ nm 1527~1565 1527~1565 1525~1610
Operating wavelength
  Po dBm 10.0~19.0 10.0~13.0 10.0~17.0
Output power
   PSD dBm/nm -11~-2 -11~-8 -17~-10
Spectral density
  F dB ≤7 ≤1.5 ≤10
Spectrum flatness
   Ps dB ≤±0.005  ®15 min.
Spectrum stability
Short-term stability Pss dB ≤±0.005  ®15 min.
  PLs dB ≤±0.02   ®8h.
Long-term stability
  TOP   Module  :-20 ~ +60
Operating temperature Bench-top :0 ~ +60
  Ts   -20 ~+70
Storage temperature
  RH % 20~80
Relative humidity
  Pc W    ≤1.0
Power consumption
  Max. Pc W ≤3
Max. Power Consumption
(L×W×H mm) mm Module  :   100×70×19
Dimensions Bench-top : 330×220×110
  SMF-28
Pigtail fiber
          FC/PC,FC/APC
Connector type
    Low Level Alarm
Alarm signal
  Module: DC +3.3V,5A;
Power supply Bench top: AC 220V±10%,50Hz,20W
