SLED Light Source 800-1650nm,5-10mW,25-60nm

SLED Light Source 800-1650nm,5-10mW,25-60nm thumbnail-1
SLED Light Source 800-1650nm,5-10mW,25-60nm thumbnail-2
SLED Light Source 800-1650nm,5-10mW,25-60nm thumbnail-3
SLED Light Source 800-1650nm,5-10mW,25-60nm photo-1
SLED Light Source 800-1650nm,5-10mW,25-60nm photo-2

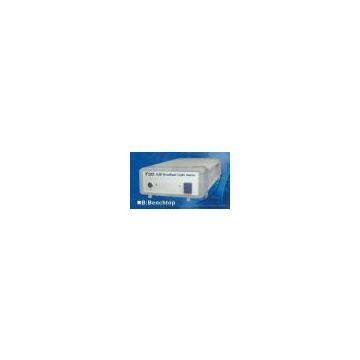

SLED Light Source 800-1650nm,5-10mW,25-60nm photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Hoyatek
Place of Origin:
China
Model Number:
HY-SLED-31-0.5-30-M-FP
Contact Supplier Request Quote Chat Now
Shenhen Hoyatek Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hoyatek
Place of Origin China
Model Number HY-SLED-31-0.5-30-M-FP

Product Description

Fiber source of the module and bench-top type SLED/SLD light source. That intergrated isolator and could be modulated from FC/PC, FC/APC, SC/PC, sc/APC connector. The wavelength are from 650-1650nm. Bandwidth (FWHM) are mostly lager than 30nm. We also manufacture multiband SLED light source, which combiner several SLED diodes and DWM into one box, and provide much wider spectrum. The multiband SLD could be customized. The fiber source is highly stabled and high power output.
We also provide the ASE broad band light source.

Application:
Optical fiber sensing system source
Fiber sensor(FBG. F-P) testing
Optical fiber grating, DWDM, filter testing
Optical fiber measurement equitment
Optical fiber sensing&communication experiment
OPTICAL COHERENCE TOMOGRAPHY

Parameter     value

  min. type max.
  λ nm 650 - 1650
Operating wavelength
  Po mW 0.5 2 20
Output power
  BW nm 10 - 100
Spectrum band width
  Ps dB ≤±0.005  ®15 min.
Spectrum stability
Short-term stability Pss dB ≤±0.005  ®15 min.
  Psl dB ≤±0.02   ®8h.
Long-term stability
  To   Module :-20 ~+60
Operating temperature Bench-top :0 ~+60
  Ts   -20 ~+70
Storage temperature
  RH % 20~85
Relative humidity
25 Pc W ≤1.0
Power consumption
 -20~60 Max. Pc W ≤3
Max. Power Consumption
(L×W×H )   mm Module :100×70×19
Dimensions Bench-top :330×220×110
  SMF-28
Pigtail fiber
  FC/PC,FC/APC
Connector typ
    Low Level Alarm
Alarm signal
  Module: DC +3.3V,5A;
Power supply Bench top: AC 220V±10%,50Hz,20W
