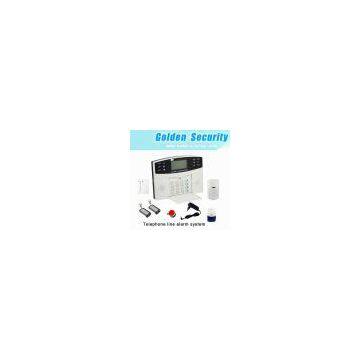

Remote control&Blue backlighting graphic display GSM home security alarm system

 Remote control&Blue backlighting graphic display GSM home security alarm system

 Main Features

1.99 wireless and 7 wired defense zones.

2.Blue backlighting graphic display.

3.6 groups of voice alarm phones (mobile phone), and 2 groups of phones in alarm receipt center

4.Built-in perpetual calendar and clock; auto record alarm history by time sequence.

5.Message recording playback: human recording, synchronous playback for recording effect in

audition.

6.More defense modes: remote defense, keypad defense, and non-local remote defense by telephone;

stay-in defense, timing defense, and individual defense in zones.

7.Programming of defense zone type: all zones could be programmed via keypad for immediate,

delayed, 24-hour and bypass alarm modes.

8.Alarm Position Programming: Intelligent automatic speech recognition: SOS alarm, fire alarm,

gas leak, magnetic contact alarm, hall alarm, window alarm, balcony

alarm, and perimeter alarm"

9.Timing arm and disarm: console features automatic timing arm and disarm.

10.Two arm models:

1)home alarm model: console music and voice alarm, external siren mute

2)home away arm model: console voice alarm, loud external siren alarm.

11,Password Recovery: Whether the console is in defense or withdrawal, the lost password can be
recovered.

12.Intelligent learning code: intelligent learning code, newly added with detector which is prompt
and efficient, and convenient and simple.

13.Event Log Query: console automatically records 45 pieces of all information concerning defense,
withdrawal and alarm events.

14.Line priority alarm: the console will cut the busy call and switch to priority alarm in case of
the alarm during ongoing call, no matter incoming or outgoing call.

15.Phone disconnection detection: automatic detection and alarm warning in line disconnection, for
anti-sabotage of telephone lines.

16.Remote control: through remote phone (cell phone) dial-up, many operations could be realized,
like defense, withdrawal and on-site monitoring by the console in the

 remote control form."

17.Console is equipped with battery box, with optional AAA NI-HM rechargeable battery. Console meets 3C safety standards and national standard GB12663-2001

18.Compatible with internationally accepted protocol of alarm receipt center: Ademco Contact ID
alarm communication protocol.

 19. home alarm system

Technical Parameter

Input power :                          12V  DC/1A

Alarm output :                         12V/300mA

Working current :                     40mA

Built in battery :                       7.2V/600mAH

Working temperature  :              -10~ +70°C

Storage Temperature  :               -20~ +80°C

Wireless receiving frequency  :   315MHz/433MHz

Wireless receiving sensitivity  :  -100db

Working voltage:110~240VAC
Operating power: 9-15VDC
