Super CCTV Tester With Multi-meter Function

Super CCTV Tester With Multi-meter Function thumbnail-1
Super CCTV Tester With Multi-meter Function thumbnail-2
Super CCTV Tester With Multi-meter Function photo-1
Super CCTV Tester With Multi-meter Function photo-2
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TG Security
Place of Origin:
China
Model Number:
MKM330
Contact Supplier Request Quote Chat Now
TG Security Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TG Security
Place of Origin China
Model Number MKM330
Description

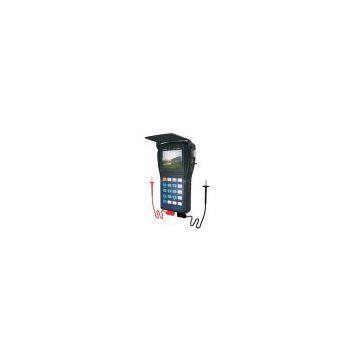

The MKM330 is a multi-function CCTV Tester device. It'san excellent hepler and partner for the installer in project case.
It cantest the camera video, PTZ function, UTP cable work status, operated with visualand simple OSD Menu, for resolving lots of project problems, it make theistallation work vecome more convenient and higher efficiency.
The newgeneration tester MKM 330 has more excellent functions as power to cmaera, Videosignal attenuation analyzing, updated RS485 analyzing, screen brightnessadjustable etc. It can help customers much more when they use it for istallationand problem-checking work.

Features

8 Useful functions help installer
High resolution 2.5-inch TFT LCD Screen
Video Test
PTZ control and test
UTP Cable test
Video Generating Function
RS485 Data Test function
Output DC 12V power to Camera
Video Signal Attenuation analyzing
Support more than 20 kinds of RS485 protocol
English OSD Menu& Number buttons
Powered by power adapter or recharging batteries
Longer woking time with batterto 10 hours
Lowconsumption, battery power status display

Specification

Model  MKM330
Video Test
Signal Mode NTSC/PAL automatically suitable
Display 2.5 inch LCD screen, 960 x 240 resolution
Video Input 1 channel BNC
Video Output 1 channel BNC
Adjustable Brightness adjustable
PTZ Control and Test
Communication RS232, RS422 simplex and RS485
Protocol Include More than 20 kinds of protocols or customized
Baud Rate 2400, 4800, 9600,19200
Multi-Meter Function
DC Voltage Test Max:1000V,Precision: 0.1mV
AC Voltage Test Max:750V ,Precision : 0.1mV
Resistance Test Max:40MΩ,Precision: 0.1MΩ
Power to Camera
Voltage DC12V
Max Current 600mA
Working Time 3-5hours to normal camera
Other Functions
Video Analyzing  Video Signal Attenuation Analyzing
UTP Cable Test Test UTP cable connection state
Signal Generating Output 1 channel video signal for testing monitor
RS485 Data Test Test the RS485 data sent from controlling device
OSD Menu English OSD menu
Keyboard New design with number buttons,easy to operation
Power and Battery
Power Adapter DC9V-12V
Battery 7.4V,1500mAh Rechargeable battery inside
Rechargeable 6 hours recharging time
Low Consumption Sleeping mode, display battery power state
Working Time 10 hours
Others
Work Temperature -30°C---+70°C
Work Humidity 30%-90%
Dimension 166mmx91mmx48mm
Packing Size 230mmx210mmx77mm
Net Weight 340g
Weight  900g
