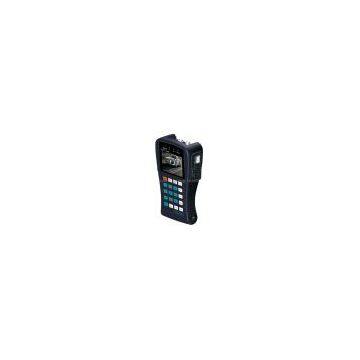

Multi-function CCTV Tester Pro
Negotiable
/ Piece
10 Pieces(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | TG Security | Place of Origin | China | |
| Model Number | MKM310 |
Product Description
Product Description
The MKM310 is a all in one CCTV Tester device.It's an excellent hepler and partner for the installer in project case.
It can test the camera video,PTZ function,UTP cable work status,operated with visual and simple OSD Menu,for resolving lots of project problems,it make the istallation work vecome more convenient and higher efficiency.
The new generation tester MKM 310 has more excellent functions as power to camera,updated RS485 analyzing,screen brightness adjustable etc. It can help customers much more when they use it for istallation and problem-checking work.
Features
The MKM310 is a all in one CCTV Tester device.It's an excellent hepler and partner for the installer in project case.
It can test the camera video,PTZ function,UTP cable work status,operated with visual and simple OSD Menu,for resolving lots of project problems,it make the istallation work vecome more convenient and higher efficiency.
The new generation tester MKM 310 has more excellent functions as power to camera,updated RS485 analyzing,screen brightness adjustable etc. It can help customers much more when they use it for istallation and problem-checking work.
Features
- 5 Useful functions help installer
- High resolution 2.5-inch TFT LCD Screen
- Video Test
- PTZ control and test
- UTP Cable test
- Video Generating Function
- RS485 Data Test function
- Output DC 12V power to Camera
- Video Signal Attenuation analyzing
- Support more than 20 kinds of RS485 protocol
- English OSD Menu& Number buttons
- Powered by power adapter or recharging batteries
- Longer woking time with batterto 8hours
- Lowconsumption ,battery power status display
Specification
| Model | MKM310 |
| Video Test | |
| Signal Mode | NTSC/PAL automatically suitable |
| Display | 2.5 inch LCD screen, 960 x 240 resolution |
| Video Input | 1 channel BNC |
| Video Output | 1 channel BNC |
| Adjustable | Brightness adjustable |
| PTZ Control and Test | |
| Communication | RS232, RS422 simplex and RS485 |
| Protocol | More than 20 kinds of protocols or customized |
| Baud Rate | 24,004,800,960,019,200 |
| Other Functions | |
| UTP Cable Test | Test UTP cable connection state |
| Signal Generating | Output 1 channel video signal for testing monitor |
| RS485 Data Test | Test the RS485 data sent from controlling device |
| OSD Menu | English OSD menu |
| Keyboard | New design with number buttons |
| Power and Battery | |
| Power Adapter | DC9V-12V |
| Battery | 2 pcs 18490 standard batteries 3.7V,capacity 1400mAh |
| Rechargeable | 5 hours recharging time,work for 8 hours |
| Low Consumption | Sleeping mode, display battery power state |
| Working Time | 8 hours |
| Others | |
| Work Temperature | -30℃---+70℃ |
| Work Humidity | 30%-90% |
| Dimension | 170mmx99mmx48mm |
| Packing Size | 230mmx210mmx77mm |
| Net Weight | 290g |
| Weight | 800g |
