Hikvision DS-7732NI-E4/16P Professional NVR Supports 32ch IP Camera Recorders

Hikvision DS-7732NI-E4/16P Professional NVR Supports 32ch IP Camera Recorders thumbnail-1
Hikvision DS-7732NI-E4/16P Professional NVR Supports 32ch IP Camera Recorders thumbnail-2
Hikvision DS-7732NI-E4/16P Professional NVR Supports 32ch IP Camera Recorders thumbnail-3
Hikvision DS-7732NI-E4/16P Professional NVR Supports 32ch IP Camera Recorders photo-1
Hikvision DS-7732NI-E4/16P Professional NVR Supports 32ch IP Camera Recorders photo-2

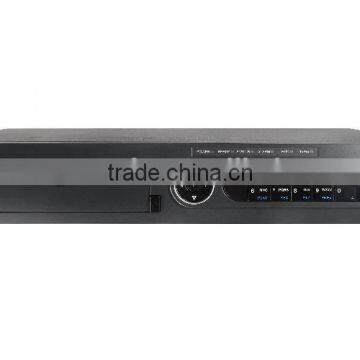

Hikvision DS-7732NI-E4/16P Professional NVR Supports 32ch IP Camera Recorders photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hikvision
Model Number:
DS-7732NI-E4/16P
Contact Supplier Request Quote Chat Now
Shenzhen Joney Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hikvision
Model Number DS-7732NI-E4/16P

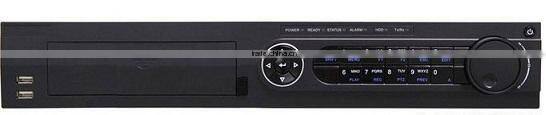

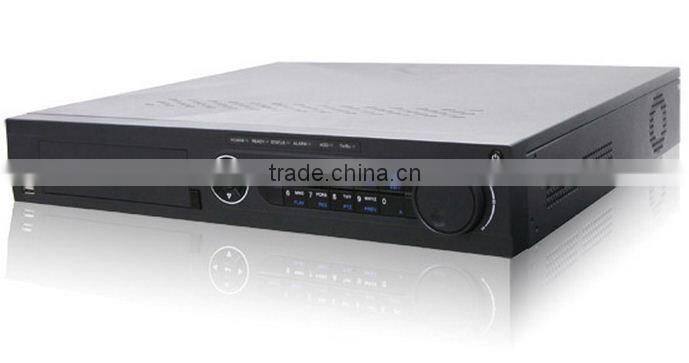

Hikvision DS-7732NI-E4/16P Professional NVR supports 32ch IP camera recorders



Product Description



  1. Key Features

• Up to 8/16/32-ch IP cameras input
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P resolution
• HDD quota and group management
• 4 SATA, 2 USB2.0





DS-7732NI-SP

Video/Audio Input

IP Video Input:

32-ch

Two-way Audio:

1-ch BNC(2.0Vp-p, 1kΩ)



Video/Audio Output

VGA Output:

1-ch, resolution:
1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz,
1280×720/60Hz, 1024×768/60Hz

CVBS Output:

1-ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)

HDMI Output:

1-ch, resolution:
1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz,

1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz

Recording resolution:

5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF /

CIF / QCIF

Audio Output:

2-ch BNC(Linear electrical level, 600Ω)

Playback Resolution:

5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF /

CIF / QCIF

Synchronous Playback:

16-ch



Hard Disk Driver

Interface Type:

4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default),or 4HDDs

Capacity:

Up to 4TB capacity for each disk

e-SATA Interface:

1 eSATA interface



External Interface

Network Interface:

1 RJ45 10M/100M/1000M adaptive Ethernet Interface,
16 independent 100Mbps PoE Ethernet interfaces

USB Interface:

3 USB2.0 interfaces

Serial Interface:

1 RJ45 RS-232 interface; 1 RS-485 interface; 1 RS-485 keyboard interface

Alarm Input:

16-ch

Alarm Output:

4-ch



General

Power Supply:

100~240VAC, 50~60Hz

Consumption:

≤ 45 W (without hard disk or DVD-R/W)

Working Temperature:

-10 °C ~ +55 °C

Working Humidity:

10%~90%

Chassis:

19-ich rack-mounted 1.5U chassis

Dimensions:

440 × 390 × 70 mm(W x D x H)

Weight:

≤ 8 Kg ( without hard disk or DVD-R/W )

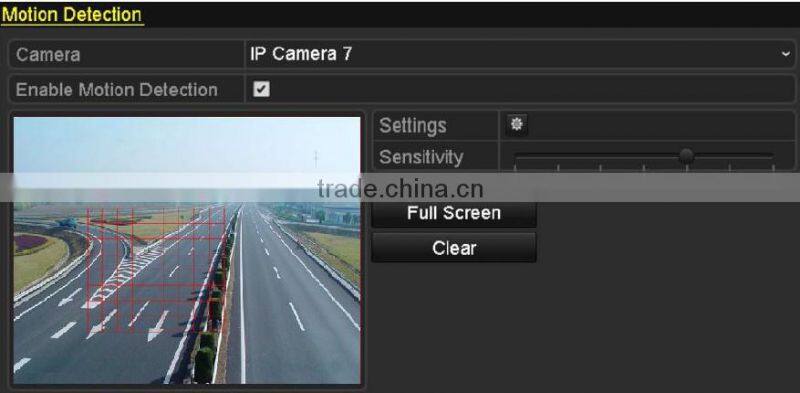

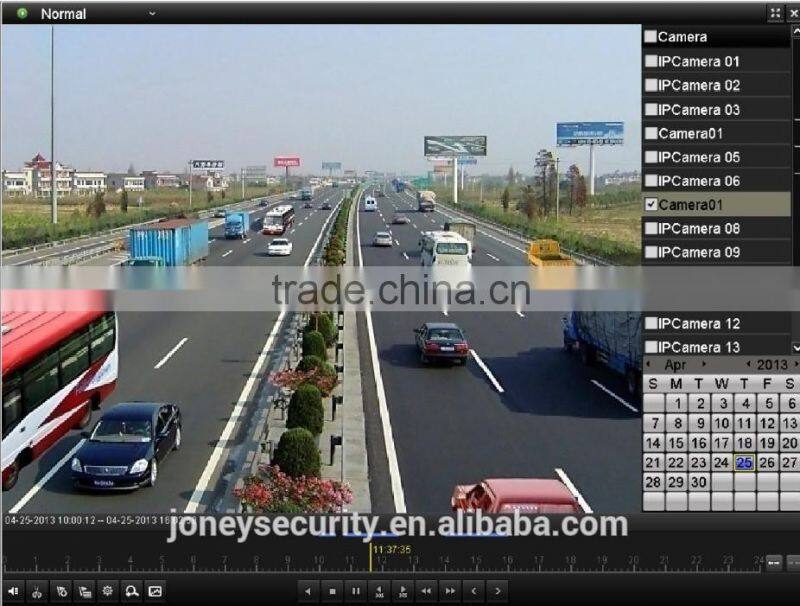

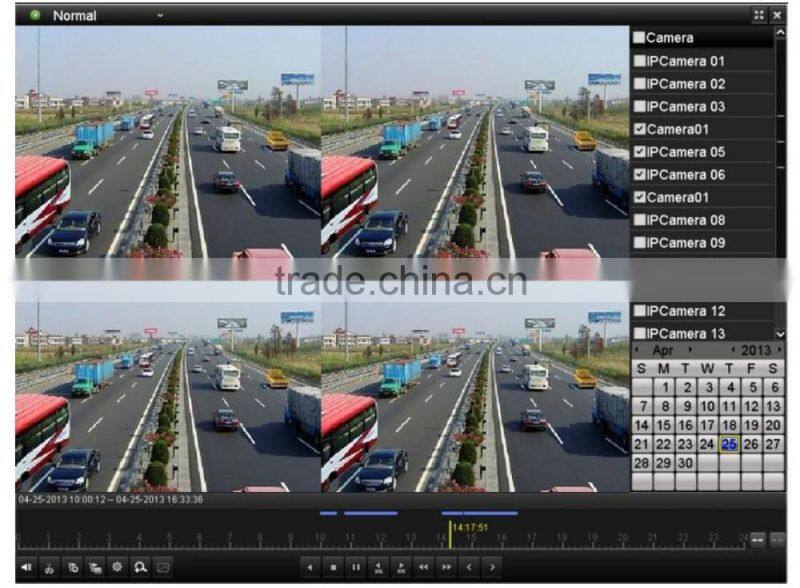

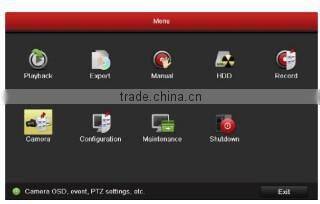

GUI INTERFACE
