Certification:CE
YL-96 CF2HP Two Hot & Two Cold Counter Moulding Machine
Quick Detail:
Product name: Two Hot & Two Cold Counter Moulding Machine Condition: New Production Capacity: 1400-1800pairs/8hrs Dimension(L*W*H): 900*1450*2000mm Control: PLC Shoemaking machinery: Two cold and hot Counter Moulding Machine Voltage: 220V Application: Shoemaking

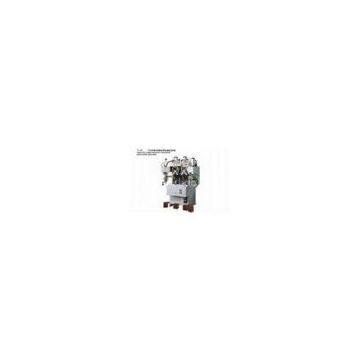

White Two Hot / Two Cold Counter Shoe Moulding Machine With PLC Control
Description:
YL-96 CF2HP Two Hot & Two Cold Counter Moulding Machine has been developed to obtain a more linear, the rational design and an improvement with interface, which makes the operation easier; Operator introduce any kind of set values of machine cycle, by control panel hot and cold mould temperatures and also receive warnings alerts in case of malfunctions; the cold mold is equipped according to offer the last for client. The outer and inner molds, flanging wipers and pincer can be adjusted; Optical projector or pneumatic positioning upper equipped with wipers for models; The cycle is marked by the column moving up to the rubber cushion then the rubber cushion gets close to make wiper movement.
Technical Features:
1. This Shoe Moulding Machine is applicable to different kinds of shoe counters for hot and cold shaping;
2. Cross projection lamp can help get right position setting;
3. Scan cutter is equipped, while shaping, fold the outer edge of shoe cover inward in convenience of shoe sides binding;
4. The temperature of cold mold is adjustable and can be lowered to -18. Internal and external dies can be made to the measure of shoe tree, which ensures that the internal mold can tally with the external mold and shaping effect is much better.
Specifications:
|
Model No.: |
YL-96 CF2HP |
|
Product name: |
Hot & Cold Counter Molding Machine |
|
Brand name: |
YiLi |
|
Certification: |
CE |
|
Voltage: |
220V |
|
Power: |
2.7KW |
|
Control: |
PLC |
|
Color: |
Red & white |
|
Dimensions: |
900*1450*2000mm |
|
N.W: |
545 kgs |
|
Capacity: |
1100prs/8hrs |
|
Air Pressure: |
6BAR |
|
Packing details: |
Export wooden case/steel pallet |
|
Delivery details: |
15 days |
|
Condition: |
New |
|
Guarantee: |
1 year |
Application:
This machine is applicable to forming operation on heels of leather shoes.
Competitive Advantage:
1. Italian Technology
2. Italian Quality
3. Original Spare Parts of good condition
4. Made in China
5. Fast Delivery Time
6. Best before, during & After-sales service
7. Competitive Price
Tag: Two Hot & Two Cold Counter Moulding Machine, Back-part moulding machine, Counter Moulding Machine, Shoe Moulding Machine, Hot & Cold Counter Moulding Machine, Shoes Machinery
