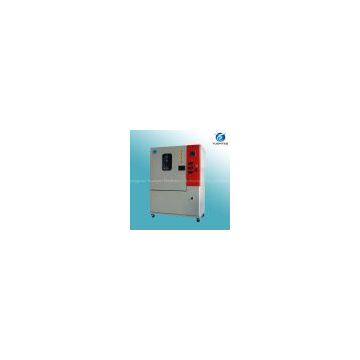

Help CenterAir Ventilation Aging Test Chamber
Related Products
This equipment is used to test the material characteristic of wire type, skin type, plastic, rubber, cloth, Equiped with a special ventilation regulator to maintain the fresh air inside when heating. This testing machine is designed with sophisticated air-displacement adjustment device and a digital voltage meter, current meter,watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator can ensure the internal temperature uniformity and stability .
Main features of Air ventilation aging test chamber
1. Uses a multi-fin, centrifugal level vertical heat exchange circulation system, air change rate can be adjusted to the desired rate.
2. Internal rotating pan can be conveniently removed and installed, the motor rotating speed of hang shelf is 8-10 rpm.
3. A digital watt/ hour meter and timer can be used to preset the air refresh rate.
Technical specifications of Air ventilation aging test chamber:
| Model | YTAT-101 | YTAT-216 |
| Test zone size W×H×D(mm) | 450×500×450 | 600×600×600 |
| Exterior chamber size W×H×D(mm) | 1180×1300×750 | 1330×1400×900 |
| Temperature range | Room temperature +10°C to 200°C(300°C) | |
| Performance | Temperature fluctuation | ±0.5°C |
| Temperature uniformity | ±2°C to ±3°C | |
| Temperature resolution | 0.1°C | |
| Heat up time(minutes) | 30 | 40 |
| Material | Exterior chamber material | Stainless steel plate+Powder Coated |
| Interior chamber material | SUS#304 stainless steel plate | |
| Insulation | PU & Fiberglass wool | |
| System | Wind Circulation | Sirocco fan |
| Heating system | SUS#304 stainless steel high-speed heater | |
| Cooling | Imported compressor,finned type evaporator,air-cooling condenser | |
| Controller | LCD touch panel controller | |
| Airchange rate | 5 to 200 (3 to 250) times/hour | |
| Other Components |
Vacuum glass inspection window,cable port(60mm),control status indicator lights,chamber lamp,loading shelves (2pcs for free) |
|
| Safety Devices |
Overheating circuit-breaker,compressor overload protection,control system overload protection, humidifying system overheating protection,breakdown indicator light |
Air ventilation aging test chamber
comply with ASTM D2436, JIS K7212, DIN 50011, BS 2648, IEC-540
In addition to the Air ventilation aging test chamber, we also produce:
Temperature & humidity testing Chamber, Temperature & humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk In environmental Testing Room, Temperature humidity & Vibration Combined Testing Chamber, Aging Oven Tester, Rain/Spray Testing Chamber, Burn-in testing equipment, Dust Tester, Steam Aging Tester, Electromagnetic High Frequency Vibration Tester, Tensile Tester, Drop Tester, Precision Oven Tester, etc.
