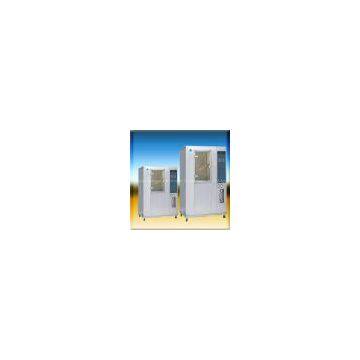

Description of Rain resistance test chamber
The Waterproof / Rain resistance Test Chamber is normally used for testing anti-rain or water-proof performance of material or products, such as steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, etc.
Technical Specifications of Rain resistance test chamber
| Model | YSRT-1728-A | YSRT-1728-E | |||
| Inner chamber size W*H*D(mm) | 1200*1200*1200 | 1200*1200*1200 | |||
| Exterior chamber size W*H*D(mm) | 1750*1850*1300 | 1750*1850*1300 | |||
| Water Temperature | Normal | Normal | |||
| Spray Type | Total waterflow(L/min) | R1 | 1.8 | 1P×1 | With in 1~1.5mm/min(In drip box) |
| R2 | 3.2 | 1P×2 | With in 3~3.5mm/min(In drip box) | ||
| S1 | 24.5 | 1P×3 | angle±600,R:400mm,1.1L/min | ||
| S2 | 39.2 | 1P×4 | angle±1800,R:400mm,1.8L/min | ||
|
Pressure of spray nozzle (kgf/cm2) |
R1 | 0.1 |
1.Flow rate of the water=0.07L/min 2.1P×3,Radius:400mm,open holes=16,total water flow:1:1L/min. 3.1P×4,Radius:400mm,open holes=25,total water flow:1:8L/min. *Radius:200mm,R400mm(For 1P×3,1P×4 only) |
||
| R2 | 0.3 | ||||
| S1 | 1 | ||||
| S2 | 3 | ||||
| Test Specimen Frame(RPM) | 17RPM | 1RPM | |||
| Spray Nozzle Rotation Speed | 23RPM |
Swing 60°from vertical for 4 seconds at one time Swing 180°from vertical for 12 seconds at one time |
|||
| Material | Interior chamber | SUS#304 | |||
| Exterior chamber | |||||
| Other Components |
Chamber lamp.Wiper casters with Adjusters |
Chamber lamp.Wiper,casters with Adjusters | |||
| Power requirements | AC 1∮ 220V 60/50Hz 4KW | ||||
Main features of Rain resistance test chamber:
1 Test automotive parts, electrical parts' water resistance and water proof.
2 Digital setting, easy operation and maintenance.
3 Adopt large transparent Window to observe testing product conditon.
In addition to the Rain resistance test chamber, We are also anufacturing:
Programmable Temperature & humidity testing Chamber, Triple layer Type Temperature & humidity Chamber, Temperature & humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Testing Room, Temperature & humidity & Vibration Combined Testing Chamber, Aging Oven Tester, Rain/Spray Testing Chamber, Burn-in testing equipment, Dust Tester, Steam Aging Tester, Electromagnetic High Frequency Vibration Tester, Tensile Tester, Drop Tester, Precision Oven Tester, etc.
