APPLICATION

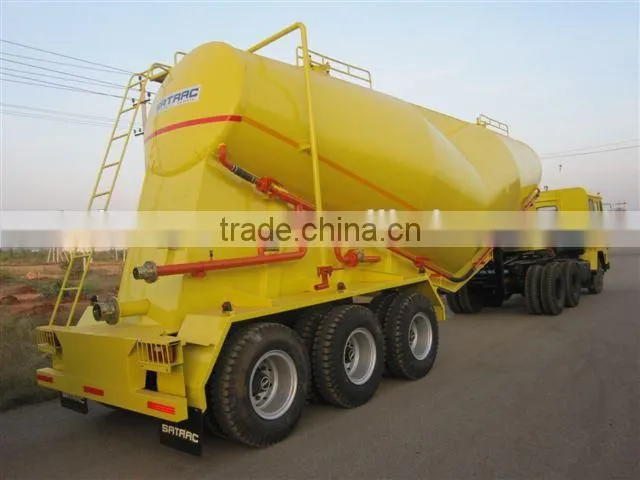

Our airslide hose are usually used for bulk cement trailer discharging. It always woking on the bottom of the trailer. Through inflation by air compressor, it makes the bulk cement discharging from the trailer. Some people called Aeration hose. It is really very similar as Fire hose frame. But it's much more strength and impact toughness than fire hose. One side of our hose is the PU coating. It is for block off the air flow.
DESCRIPTION
External Coating

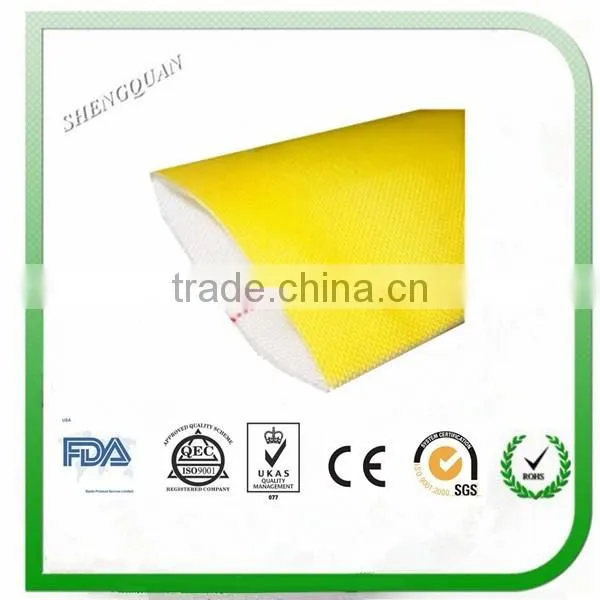

One side PU coated,standard colour yellow PU-coating increases the abrasion resistance and supports at the same time the air permeability of the uncoated saide.
Material
Warp:100% polyester high tenacity fiber
Weft: 100% polyester high tenacity filament
Characteristics:

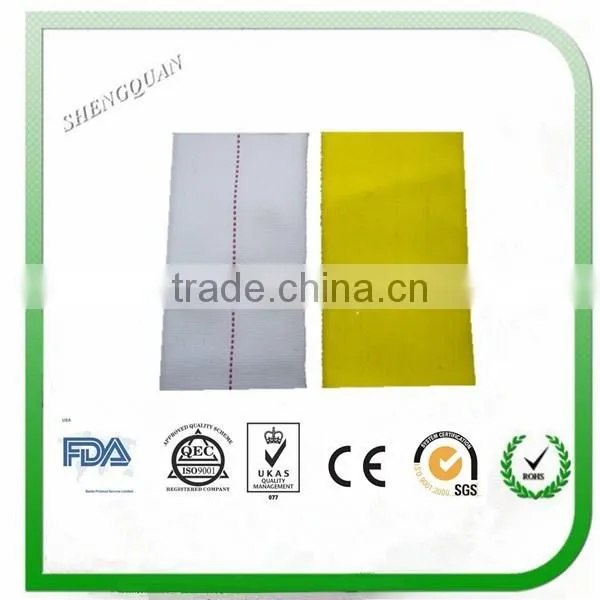

One side air permeable,other side PU-coated.Good abrasion resistance and long service life all aynthetic,lightweight and flexible,easy to coil ageing and ozone resistant-weather resistant minimum maintenance.
Cold resistant to -30°c
Heat resistant to +160°c
Applications:

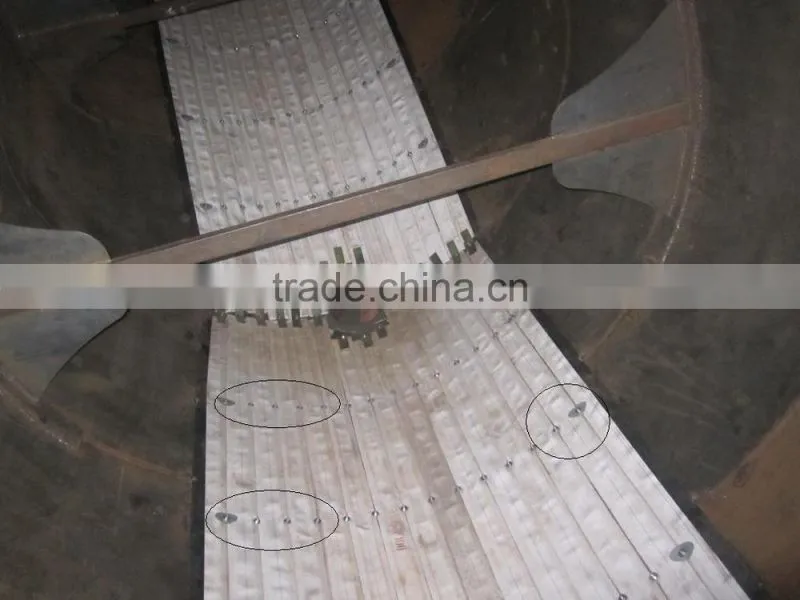

Aertion of bulk powders and granular in silos and silo wagons.
Dimension:
Standard diameter 76mm other diameter on request.
Standard lengths are 30m,50m,100m.Max length up to 500m and also avilable in any other length.
Specification:
Type |
Internal Diameter(mm) |
Falt Width(mm) |
Weight(g/m) |
HP/C---1 |
58 |
92 |
180 |
HP/C---2 |
71 |
113 |
210 |
HP/C---3 |
76 |
120 |
240 |
HP/C---4 |
77 |
125 |
300 |
Type |
Air resistance in 0.2 m³/m²/h H2O mm |
High |
600---900 |
Low |
200---500 |
Standard Lengths
Meter |
30 |
50 |
100 |
Max length up to 500m and also available in any other length.
We can produce as customers special request.
