Home > Products > Hybrid Stepper Motor > Nema 42 and 110V / 220V Hybrid Stepper Motor, 2 Phase 110BYG250 and 8 wire industrial high speed ste
Nema 42 and 110V / 220V Hybrid Stepper Motor, 2 Phase 110BYG250 and 8 wire industrial high speed ste
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
Product Details
| Brand Name: | CW | Place of Origin: | China | Model Number: | 110BYG250-150 |
Product Description
Certification:CE, ISO9000, SGS

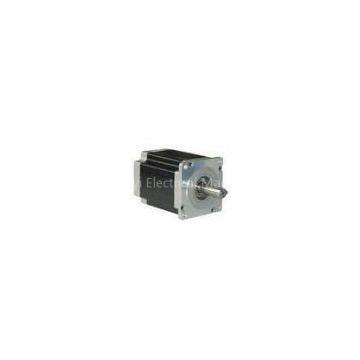

Nema 42 and 110V / 220V Hybrid Stepper Motor, 2 Phase 110BYG250 and 8 wire industrial high speed stepper motor
Detailed Product Technical Data Sheet
|
Model |
Step Angle (°) |
Motor Length (mm) |
Rated Current (A) |
Phase Resistance (Ω) |
Phase Inductane (mH) |
Holding Torque (N.m) |
Lead Wire (No.) |
|
110BYG250-99 |
0.9/1.8 |
99 |
4.5 |
0.45 |
7.5 |
9 |
4/6/8 |
|
110BYG250-115 |
0.9/1.8 |
115 |
4.5 |
0.5 |
8.4 |
12 |
4/6/8 |
|
110BYG250-150 |
0.9/1.8 |
150 |
5 |
0.7 |
15.5 |
18 |
4/6/8 |
|
110BYG250-165 |
0.9/1.8 |
165 |
6 |
0.73 |
21 |
22 |
4/6/8 |
|
110BYG250-201 |
0.9/1.8 |
210 |
6 |
1 |
24 |
30 |
4/6/8 |
Genaral Specification
Step Angle ------------------- 1.8°±5°
Temperature Rise ------------- 80℃max
Ambient Temperature -------- -20℃~+50℃
Insulation Resistance--------- 100 MΩ Min. , 500VDC
Dielectric Strength: ------------ 500VAC for 1minute
Detailed Product Structure Chart
Competitive Advantage
The above are just representative products, the derivative can made according to customs demands.
Contact Us
- Changzhou Chuangyi Electrical Machine Co.,Ltd
- Contact nameMs Hillany Xu
- Phone86-510-87935123
- AddressChangzhou, jiangsu province, qi shuyan area qi shuyan industrial park and number 39 Changzhou,Jiangsu
-
