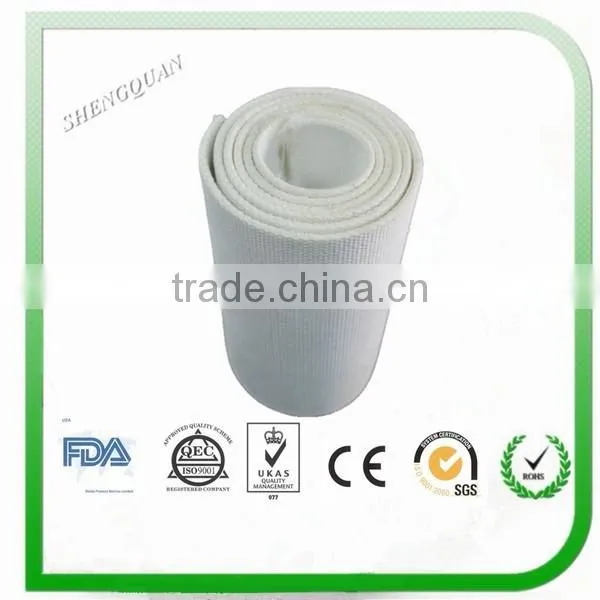

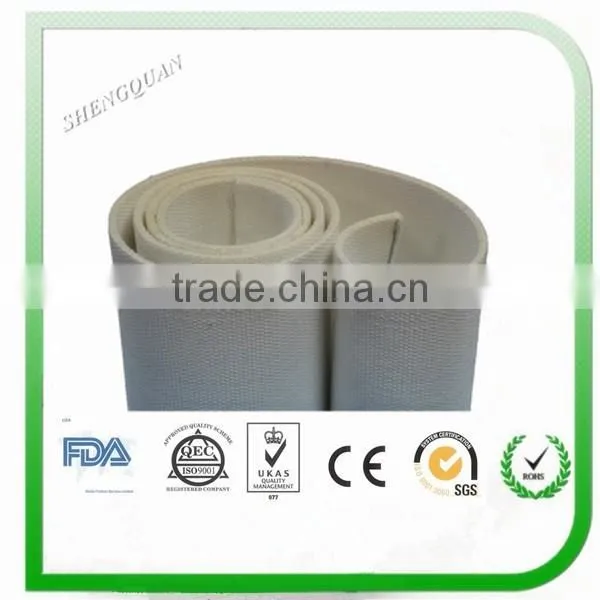

Help CenterShengquan New Pattern Solid Woven Polyester Belt
Related Products
-
100% Cotton Biscuit Dough Conveyor BeltUS$ 5 - 15MOQ: 50 Meters -
100% Cotton Conveyor BeltNegotiableMOQ: 100 Meters
-
Airslide Fabric for Granular Materials TransportationUS$ 10 - 20MOQ: 50 Square Meters
-
Polyester Airslide Conveyor BeltUS$ 10 - 99MOQ: 200 Meters
-
100% Polyester Conveyor BeltUS$ 10 - 99MOQ: 200 Meters
Our multi-layer, single-weft fabric, high-strength cotton woven conveyor belt, this woven belt is a basic automatic corrugators machine component. The various physical properties of this belt such as its tensile strength, high surface layer temperature resistance up to 230 deg.C, air permeability and other technical indexes, all meet the technical standards set forth internationally.
Woven corrugator belt was developed to transfer board and the rapid drying of the board. The structure and the quality fabric of the belt facilitates steam evaporation from the board. The structure of two surface layers are not the same as the middle layer. This structure is developed to produce flat boards on corrugating machines. The surface of the belt is twill, this reduces the noise while the belt running on the machines. The material of the two surface layer are not the same as the middle, this can increase the friction coefficient.
Solid Woven Polyester/Cotton Belt Specification
Type |
Material |
Ply |
Tensile Strength Mpa |
Heat resistance °C |
Thickness (+0.5,-0.3mm) |
Weight/m2 |
Max Width |
Air permeability under 40mm WG in m3 /m2 /min |
Minimum Bending Radius(mm |
SP/C5-10 MIDDLE SPEED |
Polyester and Cotton |
5 |
63 |
200 |
10 |
7000g |
2700mm |
1.82 |
75 |
SP/C5-10 HIGH SPEED |
Polyester and Cotton |
5 |
60 |
200 |
9 |
7500g |
3500mm |
1.95 |
50 |
Main Usage
·The Solid Woven Polyester/Cotton Belt is one main special part of corrugated machine automatic production line. Its main function is to ensure that the board transportation and the rapid evaporation of the water in board.
* We can product as customers special request.
