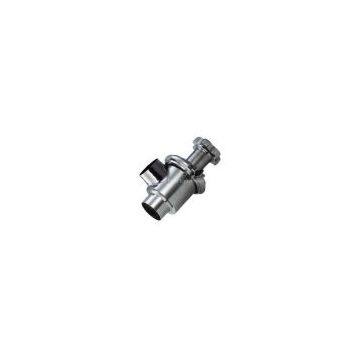

Help CenterStainless Steel Sanitary Regulating Valve
Related Products
-
Stainless Steel Sanitary Reversing ValveUS$ 50 - 50MOQ: 10 Units -
Stainless Steel Sanitary Safety ValveUS$ 50 - 50MOQ: 10 Units
-
Stainless Steel Sanitary Tank Bottom ValveUS$ 50 - 50MOQ: 10 Units
-
Stainless Steel Sanitary Aseptic Sample ValveUS$ 20 - 20MOQ: 10 Units
-
Stainless Steel Sanitary Sample ValveUS$ 20 - 20MOQ: 10 Units
Application
regulating valve is widely used in sanitary fluid pipeline system to regulate pressure and flow.
Materials
Product wetted parts: AISI 316L / 304
Plug and seal: EPDM, or others upon request.
Working Principle
This type of regulating valve is operated by a hand wheel. While the hand wheel is adjusted clockwise, pressure and flow will decrease gradually until the valve closes; While the hand wheel is adjusted anticlockwise, pressure and flow will increase gradually until the valve is fully open; (Gradually adjust the conical plug, and then lock the plug at the desired position with bolts.)
Standard Design
· Valve body and valve stem with stopper are made of stainless steel AISI 304 or acid-resistant stainless steel AISI 316L.
· Valve body OD sand polished, valve stem is strengthened by enhanced chromium plating.
· Gasket and lip seal use EPDM material with high thermo-stability.
