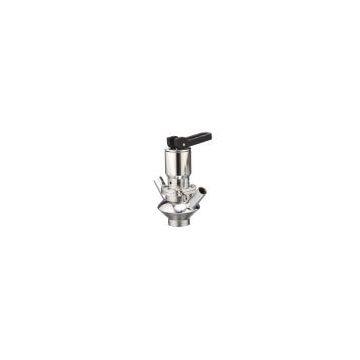

Help CenterStainless Steel Sanitary Aseptic Sample Valve
Related Products
-
Stainless Steel Sanitary Sample ValveUS$ 20 - 20MOQ: 10 Units -
Stainless Steel Sanitary Regulating ValveUS$ 20 - 20MOQ: 10 Units
-
Stainless Steel Sanitary Reversing ValveUS$ 50 - 50MOQ: 10 Units
-
Stainless Steel Sanitary Safety ValveUS$ 50 - 50MOQ: 10 Units
-
Stainless Steel Sanitary Tank Bottom ValveUS$ 50 - 50MOQ: 10 Units
Aseptic Sampling Valves
Application
AV-7A stainless steel aseptic sampling valves are used in the food, dairy, brewery, winery and many other hygienic industries.
Materials
Valve body: stainless steel, AISI 316L
Valve head: stainless steel, AISI 304
Diaphragm: Silicone (for standard valve), EPDM (for valve with micro type connector)
Standard Design
Aseptic sampling valve is made from three parts: valve body, valve head and one piece of diaphragm. A rubber diaphragm valve is put at the axis of valve head, acting as an extensible valve core.
· End connections can be welded, clamped or threaded, only one size DN8 available.
· Handle type: rotary handle, key handle
· Valve open: sampling valve close: sterilization
|
b></big><big><b></b></big>;color:#666666;mso-font-kerning:0pt\"> |
|
|
Open |
Close |
Technical Specification
Nominal Pressure:
Max. product pressure: 87psi (6bar)
Temperature:
Max. sterilization temperature: 130°C, dry steam: 121°C (2bar).
Steam must be dry, because condensed water will damage the diaphragm. The diaphragm should be replaced after 100 times samplings or sterilizations.
