Home > Industrial Equipment & Components > Valve > Ball Valve > Stainless Steel Sanitary 3-way Diaphragm Valve

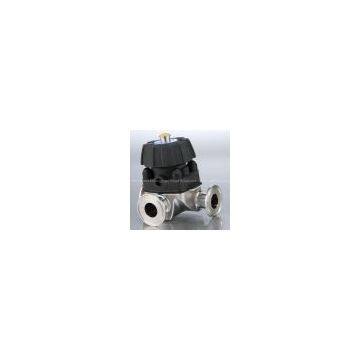

Stainless Steel Sanitary 3-way Diaphragm Valve

Name: Stainless Steel Sanitary 3-way Diaphragm Valve
Brand: Changnan
SKU: 148088906
Availability: InStock

Stainless Steel Sanitary 3-way Diaphragm Valve thumbnail-1

Stainless Steel Sanitary 3-way Diaphragm Valve photo-1

US$ 50 - 50 MOQ: 10 Units

Key Specifications

Get Latest Price

Brand Name:

Changnan

Place of Origin:

China

Model Number:

Contact Supplier Request Quote Chat Now

Wenzhou Changnan Fluid Equipment Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Changnan

Place of Origin China

Application

AV-4M series is a manual type sanitary diaphragm valve, which is widely used in food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.

Materials

Steel parts: stainless steel AISI 316L / 304 (forged)
Diaphragm: EPDM + PTFE

The seal materials comply with FDA177.2600 standard. Using proprietary technology, the diaphragm uses a combination of EPDM and PTFE, which is secured using SS bolts. The sealing part where contact with the medium is of PTFE material, it has good cold resistance -13°F (-25°C), excellent heat-resistance 482°F (+250°C), tolerance to most chemicals, and excellent abrasion resistance to medium flow.

Standard Design

· Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, ASME / BPE.

· The parts mainly include: a hand wheel, diaphragm and valve body which are assembled together with bolts and nuts. The body can be two ways or three ways.

· End connections: butt-welded, sanitary clamp, or others upon request

· Body type: T-type tee, U type tee, Mini type, tank bottom type, etc.

Technical Specification

· Size available: 1/4", 1/2", 3/8", 3/4", 1", 1 1/2", 2" 2 1/2", 3"

· Max. working pressure: 147psi (10bar)

· Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM

· End connections: butt-welded, sanitary clamp, T-type tee, U type tee, Mini type, tank bottom type etc.

· Inside polishing: Ra 16-32& micro;in (0.4 ~ 0.8µm)

· Diaphragm available: EPDM+PTFE / EPDM / Silicon / FPM (Viton)

· Available for CIP/SIP.

b></big><big><b></b></big>;color:#666666;mso-font-kerning: 0pt\">Technical Parameters
Steel material	Product wetted parts	AISI 316L / 304 forged (1.4404 / 1.4306)	Provided with material inspection report
Other steel parts	AISI 304
Seal material	Standard	EPDM+PTFE	All seal materials comply with FDA 21CFR117.2600
Options	VMQ
Pressure	Working pressure	0 ~ 10bar (0 ~ 145psi)
Control air pressure	5 ~ 8bar (70 ~ 120psi)
Temperature	Working temperature	EPDM: 14 ~ 248°F (-10 ~ 120°C) VMQ: -58 ~ 356°F (-50 ~ +180°C) FPM: -22 ~ 446°F (-30 ~ +230°C)
Sterilization temperature	302°F (150°C, Max. 20 min)
Surface treatment	Inside surface treatment	Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment	Ra 32 ~ 63µin (0.8 ~ 1.6µm)
Connection	The welding diameter	Welding ends: DIN 11850-2 with 11850-1 / SMS / 3A / ISO Series, etc.
End connections: butt-welded, sanitary clamp, T-type, U-type or others upon request.
Pneumatic control	Normally Closed (NC) - Air to open and spring to close; Normally Open (NO) - Air to close and spring to open; Air to Air (AA) - Air to open, air to close.
