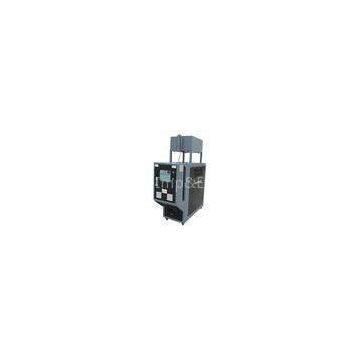

3N-380-50HZ Mold Temperature Control Unit AEOT-75-120 With DILM3810 Heating Contactor thumbnail-1
3N-380-50HZ Mold Temperature Control Unit AEOT-75-120 With DILM3810 Heating Contactor photo-1
Negotiable MOQ: 1 Metric Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
AODE
Place of Origin:
China
Model Number:
AEOT-75-120
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name AODE
Place of Origin China
Model Number AEOT-75-120
Delivery Time:20 – 35 work days
Certification:CE & ISO9001:2000


3N-380-50HZ Mold Temperature Control Unit AEOT-75-120 with DILM3810 Heating Contactor


       AEOT-75-120 Mold Temperature Control Units(MTC) are used to preheat a process to the desired operating temperature by engaging the unit\'s electric immersion heater and recirculating the oil in the system. Oil type MTC circulate high temperature heat transfer fluid through the process application for temperature control. AEOT-75-120 offer the range of temperature control from 25°C to 300 °C.

SAFETY PROTECTIONS:

No-fuse breaker for the overcurrent phenomenon of general power supply. Motor reversion protection and indicator light up. Cooling water lacking protection and indicator light up. Circulating pump overload protection and indicator light up. BY-PASS pressure release loop for hot oil. Phase failure protection. High-voltage explosion-proof device. Anomaly explosion-proof buzzer. Prevent dry combustion device, discharge scale deposit protection. No-voltage exhaust protection system.



SPECIFICATION DETAILS:


No.

Part

Specification

Data

1

model

AEOT-75-120

2

power supply

3N-380-50HZ

3

Hot medium

oil

4

control mode

PC board Self - optimized microprocessor

5

accuracy of temp. control

PID±1℃

6

Max. temperature

300℃

7

Min. temperature

25℃

8

heating power

80KW(adjustable)

9

heat exchange area

0.1M2

10

Pump

model

SAP50-32-200

power

5.5KW

lift

50M

flow

12.5M3/hr

11

heating method

Direct heating(Indirect cooling)

12

Pipeline

hot medium inlet/outlet

DN40(adjustable)

cooling water inlet/outlet

DN15(adjustable)

drain oil port

DN15(adjustable)

13

Temp. Controller

model

P6100(WEST)

modulating action

Dual PID control of heating & cooling

Temp. interaction stick

K- thermocouple

display status

Respectively display set point & real point

output select

SSR output

14
