Home > Products > New product > Wheel Loader ZL15F with CE and Xinchai 498 EuroIII Engine

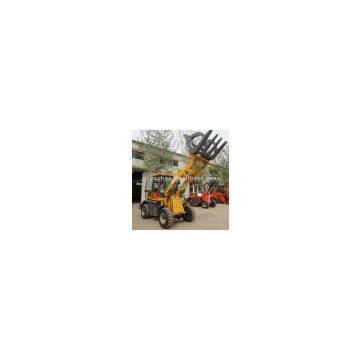

Wheel Loader ZL15F with CE and Xinchai 498 EuroIII Engine
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Guohua | Place of Origin | China | |
| Model Number | ZL15F |
Product Description
1. Adopting hydraulic-mechanical transmission that can make the best use of engine power, realize automatic continuously variable transmission according to the external resistance, avoid engine stall due to the sudden increase in external load, and can also absorb and eliminate the vibration and shock of the external load to the engine to protect the transmission system and the engine and improve the service life of the whole machine, which make the machine easy and comfortable to operate and have higher economical and production efficiency;
2. Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;
3. Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the wheel loader have good off-road performance, trafficability and more traction;
4. Fully enclosed cab with adjustable and suspension seat can provide comfortable driving and wide view;
5. Using 12-16.5-12PR ultra-wide tyres to increase the stability of the whole machine and the service life of tyre;
6. Brake system adopts single-line, hydraulic, expansion-shoe brake on 4 Wheels;
7. This small wheel loader adopts ZL265 integrated torque converter, the whole machine is fully hydraulic transmission, and the model of axle is 50 axle;
8. This compact wheel loader can be optionally equipped with pilot control system to make it easy to operate and increase the hydraulic performance of the whole machine;
9. Power system adopts XINCHAI A498BT1 (EURO III) direct injection, environmentally friendly, 4-cylinder diesel engine to make this compact wheel loader have strong power and high acceleration, which greatly increase its high working efficiency;
10. This compact wheel loader can be equipped with optional quick hitch (quick coupler), and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass grab, log grab, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow blade, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.
|
Model: ZL15F
|
||
|
|
Item
|
Parameters
|
|
Performance
|
1 .Rated Load
|
1500 kg
|
|
2. Total Weight
|
3400 kg
|
|
|
3. Rated Bucket Capacity
|
0.7 m3
|
|
|
4. Max. Tractive Force
|
30 KN
|
|
|
5. Max. Breakout Force
|
≥ 32 KN
|
|
|
6. Max. Gradeability
|
38°
|
|
|
7. Max. Dumping Height
|
2800 mm
|
|
|
8. Max. Dumping Reach
|
1000 mm
|
|
|
9. Raising Time
|
≤ 5.0s
|
|
|
10. Total Cycle Time
|
≤ 9.5 s
|
|
|
11. Overall Dimensions (L x W x H)
|
5060*1690*2630 mm
|
|
|
12. Min. Turning Radius
|
3200 mm
|
|
|
Engine
|
13. Model
|
XINCHAI A498BT1 (EURO III)
|
|
14. Type
|
Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine
|
|
|
15. Rated Power
|
36.8 kW
|
|
|
16. Rated Speed
|
2400 rpm
|
|
|
17. Min. Fuel Consumption Ratio
|
≤ 230 g/kW·h
|
|
|
Transmission
|
18. Hydraulic Torque Converter
|
ZL265Integrated Torque Converter
|
|
19. Gear Shift
|
1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
|
|
|
20. Max. Speed
|
25 km/h
|
|
|
Drive Axle
|
21. Model of Axle
|
50 Drive Axle
|
|
22. Wheel Tread
|
1430 mm
|
|
|
23. Wheel Base
|
2170 mm
|
|
|
Drive
|
24. Mode
|
4-wheel Drive
|
|
Hydraulic System
|
25. System Working Pressure
|
16 Pa
|
|
26. Fuel Tank Capacity
|
86 L
|
|
|
Brake System
|
27. Service Brake
|
Single-line, Hydraulic, Expansion-shoe Brake on 4 Wheels
|
|
28. Parking Brake
|
Hand Flexible Shaft Controlled Disc Brake
|
|
|
Tyre
|
29. Type Specification
|
12-16.5-12PR
|
|
30. Front Tyre Pressure
|
0.40 Mpa
|
|
|
31. Rear Tyre Pressure
|
0.35 Mpa
|
