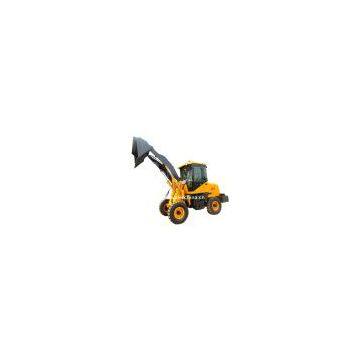

1.0T Wheel Loader ZL10A With Pallet Fork

Name: 1.0T Wheel Loader ZL10A With Pallet Fork
Brand: Guohua
SKU: 148049494
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Guohua

Place of Origin:

China

Model Number:

ZL10A

Qingzhou Guohua Construction Machinery Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name Guohua

Place of Origin China

Model Number ZL10A

Using 12.00-16-14PR ultra-wide tyres to increase the stability of the whole machine;
Running system adopts 5-shaft mechanical gearbox and shaft-drive mode;
Power system adopts CHANGCHAI ZN385Q diesel engine to make this compact wheel loader energy saving and environmentally friendly with high working efficiency;
4-wheel drive and fully hydraulic steering make this mini wheel loader light and flexible;
The gear shift of this small wheel loader has 3 forward and 1 reverse shifts, and the drive axle of this small wheel loader adopts 50 axle;
This compact wheel loader can be equipped with optional quick hitch (quick coupler), and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass grab, log grab, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow blade, snow bucket, drum grab and barrel grapple, etc.

Model: ZL10A
	Item	Parameters
Performance	1 .Rated Load	1000 kg
2. Total Weight	2500 kg
3. Rated Bucket Capacity	0.5 m³
4. Max. Tractive Force	28 KN
5. Max. Breakout Force	≥ 22 KN
6. Max. Gradeability	38°
7. Max. Dumping Height	2800 mm
8. Max. Dumping Reach	980 mm
9. Raising Time	≤ 4.5 s
10. Total Cycle Time	≤ 8.5 s
11. Overall Dimensions (L x W x H)	480016502550 mm
12. Min. Turning Radius	3000 mm
Engine	13. Model	CHANGCHAI ZN385Q
14. Type	Three-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine
15. Rated Power	20 kW
16. Rated Speed	2200 rpm
17. Min. Fuel Consumption Ratio	≤ 215 g/kW·h
Transmission	18. Mode	Mechanical Shift
19. Gear Shift	3 Forward, 1 Reverse
20. Max. Speed	25 km/h
Drive Axle	21. Model of Axle	50 Drive Axle
22. Wheel Tread	1370 mm
23. Wheel Base	2150 mm
Drive	24. Mode	4-wheel Drive
Hydraulic System	25. System Working Pressure	16 Pa
26. Fuel Tank Capacity	70 L
Brake System	27. Service Brake	Foot Drum Brake
28. Parking Brake	Hand Flexible Shaft Controlled Disc Brake
Tyre	29. Type Specification	12.00-16-14PR
30. Front Tyre Pressure	0.40 Mpa
31. Rear Tyre Pressure	0.35 Mpa
