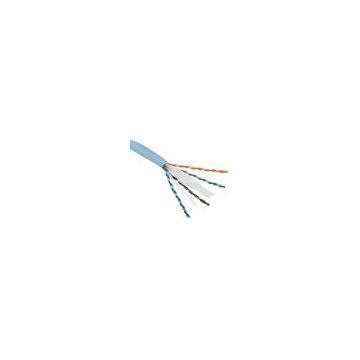

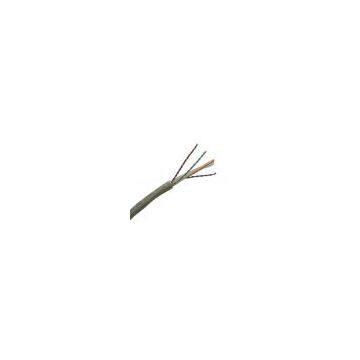

lan cable cat5e cat6 100m

FOB Price

Negotiable / Piece

1000 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	lasun,CCB		Place of Origin	China
Model Number	Cat5e UTP

Specifications:
Meets ANSI/EIA/TIA 568-B.2 requirements
Fire protection – IEC 60332-1 (CM )
The cable meets UL 444 UL 1581 fire safety standard

Description:
Unshielded Copper cable, 4 pairs, category 5e, solid Cable is used for indoor installation Application: Horizontal wiring in LAN

Materials:
Conductive material: wire made of soft annealed electrolytic copper Conductor insulation: HDPE The cable jacket: PVC

Technical characteristics:
Conductor diameter: 0.51 mm (0.02") (24 AWG) Insulated conductor diameter: 0.035" ± 0.001" (0.9 ± 0.02 mm) Outer cable diameter: 5.1 ± 0.2 mm (0.2" ± 0.008") Jacket thickness: 0.4 mm (0.015") Minimum bend radius: 4 outer cable diameters Conductor elongation: 14% minimum Rip cord has a breaking strength of 22 lbs (98 N) Pulling strength: 92 N Installation temperature: -5°C – +50°C (+23°F – +122°F) Operating temperature:-20°C – +75°C (-4°F – +167°F) Weight per 1000 ft: 9.8 kg (21.5 lbs) Standard package: 305 m (1000 ft)

Electrical characteristics
Frequency, MHz	RL	Attenuation, dB	NEXT, dB	PSNEXT, dB	ELFEXT, dB	PSELFEXT, dB
0.772	-	1.8	67.0	64.0	-	-
1.0	20.0	2.0	65.3	62.3	63.8	60.8
4.0	23.0	4.0	56.3	53.3	51.7	48.7
8.0	24.5	5.8	51.8	48.8	45.7	42.7
10.0	25.0	6.5	50.3	47.3	43.8	40.8
16.0	25.0	8.2	47.3	44.3	39.7	36.7
20.0	25.0	9.3	45.8	42.8	37.7	34.7
25.0	24.3	10.4	44.3	41.3	35.8	32.8
31.25	23.6	11.7	42.9	39.9	33.9	30.9
62.5	21.5	17.0	38.4	35.4	27.8	24.8
100.0	20.1	22.0	35.3	32.3	23.8	20.8

Conductor resistance at 20°C (68°F)	9.38 Ohm/100 m (2.9 Ohm/100 ft)
DC Resistance Unbalance	5%
Pair-to-Ground Capacitance Unbalance	330 pF/100 m (101 pF/100 ft)
Impedance 0.772-100 MHz	85-115 Ohm
Mutual Capacitance	5.6 nF/m (1.7 nF/ft)
Spark Test	2.5 kV
