36PCS 560 TV Lines Internal Black ATW1 White Balance indoor 1/3 Sony Color Super HAD CCD Privacy Ca

FOB Price

Negotiable / Meter

1 Meter(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

AnQuans

Place of Origin

China

Delivery Time:7-20 Days
Certification:CE、ROHS、 FCC,UL ,SGS

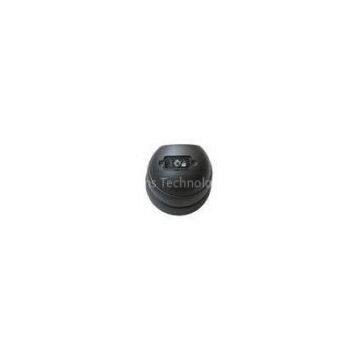

36PCS 560 TV Lines Internal Black ATW1 White Balance indoor 1/3 Sony Color Super HAD CCD Privacy Cameras

Technical parameters:

Model number	HKD-60636HVN
Image Sensor	1/3\" Sony Color Super HAD CCD, 410K Pixels
Total Pixels	N: 811(H) x 508 (V) / P: 795 (H) x 596 (V)
Effective Pixels	N; 768(H) x 494 (V) / P: 752 (H) x 582 (V)
Scanning System	N: 525 (H) Lines, 2:1 Interlaced / P :625 (H) Lines, 2:1 Interlaced
Synchronization	Internal
Resolution	COLOR : 560 TV Lines (Typ.)
Video Output	VBS : 1.0Vp-p, 75Ω composite
S/N Ratio (Y signal)	52dB (AGC Off, Weight On)
Minimum Illumination	0.00 Lux / F1.2 (IR ON)
Backlight Compensation	BLC / D-WDR/ HLM / OFF Selectable
Day & Night Selection	COLOR / Black & White / EXT
Gain Control	LOW / MIDDLE / HIGH / OFF Selectable
White Balance	ATW1 / ATW2 / AWC / Manual
Outdoor (1, 800°K ~ 10, 500°K)
Indoor (4, 500°K ~ 8, 500°K)
Electronic Shutter Speed	N : 1/60 sec ~ 1/120, 000 sec / P :1/50 sec ~ 1/120, 000 sec
Sense-Up	ON / OFF (Selectable Limit x2 ~ x256)
OSD	Built-in
Motion Detection	ON(16x12 grid) / OFF
IRIS Control	DC
Lens Shading	/
DNR	ON (0 ~ 32 Level Adjustable)
Privacy	ON / OFF (8 Zone)
Mirror (H-REV)	ON / OFF
Flip (V-REV)	ON / OFF
STILL	ON / OFF
Sharpness	ON / OFF (Level Adjustable)
Saturation	ON / OFF (Level Adjustable)
Digital Zoom	ON (x1 ~ x256) / OFF
Parking Line	/
Communication	/
Blemish Compensation	128 points
Lens	4~9mm varifocal lens
IR LED	36PCS
Operating Temp.	-10℃ ~ +50℃ [14°F ~ 122°F]
Operating Humidity	30 ~ 80% RH
Power Source	DC 12V ± 10%, Max. 2.0W
Dimensions	120mmX120mmX96mm
Weight	800g
